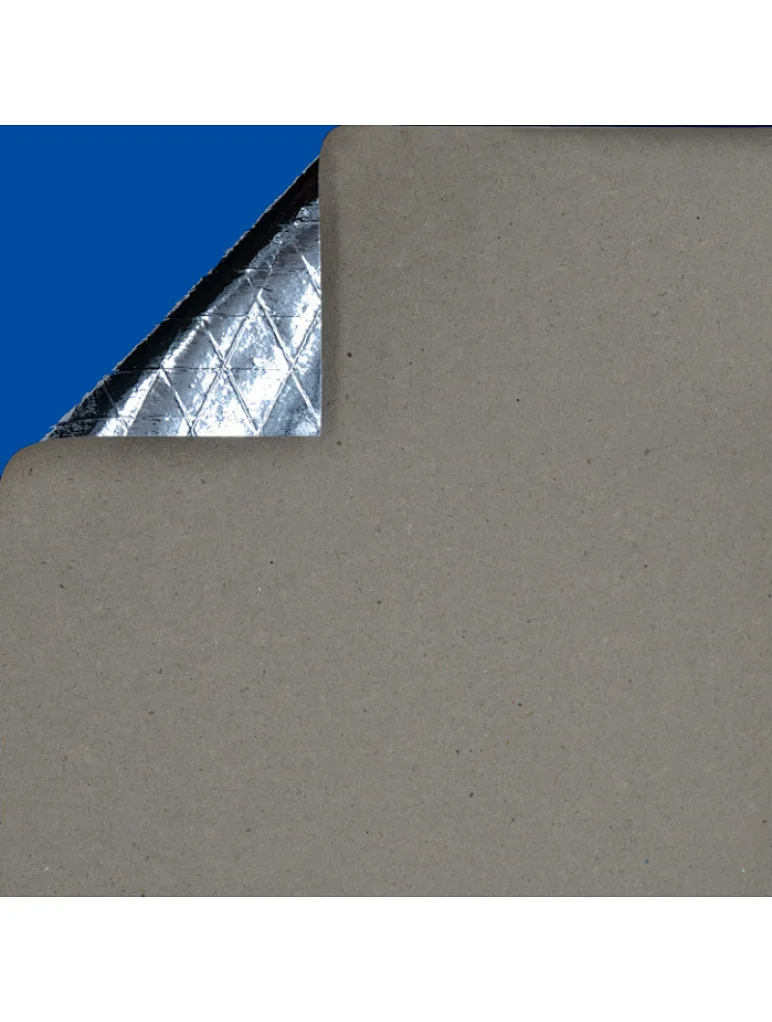

MSK (Alumized reinforced kraft)

MSK (Alumized reinforced kraft)
MSK (Metalized alum foil with reinforced kraft)
FOB
1 square meter
China
7-15Day
Perfect foil is a professional supplier of insulation facings to the duct wrap and duct board market. Our line of MSK facings include MSK-7150A and MSK-7150B etc. for duct wrap and duct board. These facings are economic and with higher tensile strength, they can provide low emittance surfaces and protect the insulating material from physical abuse and moisture intrusion.

Alumized Foil-Kraft Facing/ Metalized Foil-Scrim-Kraft Facing is mainly used for insulation & vapor barrier materials for wrapping glass wool duct, rock wool duct and foam insulation, etc. It is also suitable for other insulation applications where a general use vapor retarder is needed, because of their low emissivity.
Quantity

Perfect foil is a professional supplier of insulation facings to the duct wrap and duct board market. Our line of MSK facings include MSK-7150A and MSK-7150B etc. for duct wrap and duct board. These facings are economic and with higher tensile strength, they can provide low emittance surfaces and protect the insulating material from physical abuse and moisture intrusion.

Alumized Foil-Kraft Facing/ Metalized Foil-Scrim-Kraft Facing is mainly used for insulation & vapor barrier materials for wrapping glass wool duct, rock wool duct and foam insulation, etc. It is also suitable for other insulation applications where a general use vapor retarder is needed, because of their low emissivity.

1. Products List

Product

Description

Application

MSK-7150A

Metalized Foil:

7u/ 3-way Scrim 8 x12 / 100mm / PE / Kraft: 50gsm

Utility grade, 3-way scrim FSK Facing.

Suitable for duct wrap andmetal building as well as pipe insulation.

MSK-7160A

Metalized Foil:

7u/ 3-way Scrim 8 x12 / 100mm / PE / Kraft: 60gsm

Commercial grade, 3way scrim FSK Facing.

Suitable for duct wrapand metal building as well as pipe insulation. Thick Kraft.

MSK-7180A

Metalized Foil:

7u / 3-way Scrim 8 x12 / 100mm / PE / Kraft: 80gsm

High-grade, 3-way scrim FSK Facing.

Good for duct wrap and metalbuilding as well as pipe insulation.

Thicker Kraft and higher strength.

MSK-7150B

Metalized Foil:

7u / 2-way Scrim 12.5 x12.5mm / PE / Kraft: 50gsm

Utility grade, 2-way scrim FSK Facing.

Suitable for duct wrap andmetal building as well as pipe insulation.

MSK-7160B

Metalized Foil:

7u / 2-Way Scrim 12.5 x12.5mm / PE / Kraft: 60gsm

Commercial grade, 2-way scrim FSK Facing.

Suitable for duct wrapand metal building as well as pipe insulation.

Thick Kraft.

MSK-7180B

Metalized Foil:

7u / 2-way Scrim 12.5 x12.5mm /PE / Kraft: 80gsm

High-grade, 2-way scrim FSK Facing,

Good for duct wrap and metalbuilding as well as pipe insulation.

Thicker Kraft and higher strength.

MSK-R7150A

Metalized Foil:

7u / 3-way Scrim 8 x12/100mm / FR Glue / Kraft: 50gsm

Utility F/R Grade, 3-way scrim FSK Facing.

Suitable for duct wrap and metal building as well as pipe insulation.

MSK-R7160A

Metalized Foil:

7u / 3-way Scrim 8 x12/100mm / FR Glue / Kraft: 60gsm

Commercial F/R Grade, 3 way scrim FSK Facing.

Suitable for duct wrap and metal building aswell as pipe insulation.

MSK-R7150B

Metalized Foil:

7u / 2-way Scrim 12.5x12.5mm / FR Glue / Kraft: 50gsm

Utility F/R Grade, 2-way scrim FSK Facing.

Suitable for duct wrap and metal building aswell as pipe insulation.

MSK-R7160B

Metalized Foil:

7u / 2-way Scrim 12.5x12.5mm / FR Glue / Kraft: 60gsm

Commercial F/R Grade, 2-way scrim FSK Facing.

Suitable for duct wrap and metal building aswell as pipe insulation.

2. Typical Physical Properties

Foil-Kraft Facing / Foil-Scrim-Kraft Facing

Product

Basic Weight

(g/m2)

WVTR

ng/N.s

Tensile MD

(N/25mm)

Tensile XD

(N/25mm)

Bursting

Strength (N)

Fire Rating

MSK-7150A

85

5.75

115

51

30

---

MSK-7160A

95

5.75

130

60

30

---

MSK-7180A

115

5.75

150

75

40

---

MSK-7150B

85

5.75

115

55

30

---

MSK-7160B

95

5.75

130

70

30

---

MSK-7180B

115

5.75

150

80

40

---

MSK-R7150A

76

5.75

110

50

30

---

MSK-R7160A

86

5.75

130

60

30

---

MSK-R7150B

76

5.75

115

55

30

---

MSK-R7160B

86

5.75

130

70

30

---

IMPORTANT NOTE:

1. The data above are typical values only, and should not be used for specifications purpose.

2. Tolerance: Weight and Thickness: ±10%; Width: ±3mm; Length: Log Roll: ±0.3m, Jumbo Roll ±0.5%.

3. The products should be stored at room temperature, kept away from wet and heat source.

4. The users should take test and do trial-application on the above products before coming into application so as to witness and ensure suitability for their special purpose and technique.

* Please kindly contact with sales staff confirm the specific specifications.
