I.Perfect Glass Wool Pipe
Description
PERFECTglass wool pipe sectionis used for the thermal insulation of industrial pipes, central heating and solar energy installations, for the insulation against freezing and condensation of the pipes and for vibration and sound insulation of the pressure water pipes as well.
Glass wool pipe is manufactured from a unique rotary process with high density glass wool, which is used for hot and cold pipes in one meter length.
It is designed to fit pipes of external diameter of 15mm to 400mm with insulation thickness of 20mm to 100mm while other sizes are available upon request. Density ranges from 48kg/m3 to 90kg/m3. Pipes are split longitudinally to provide ease of installation. For application where vapor barrier are needed, pipes faced with aluminium foil are available

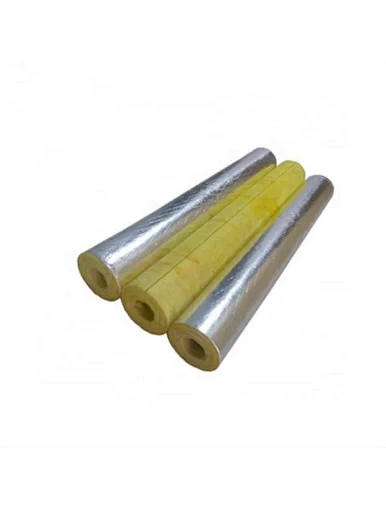

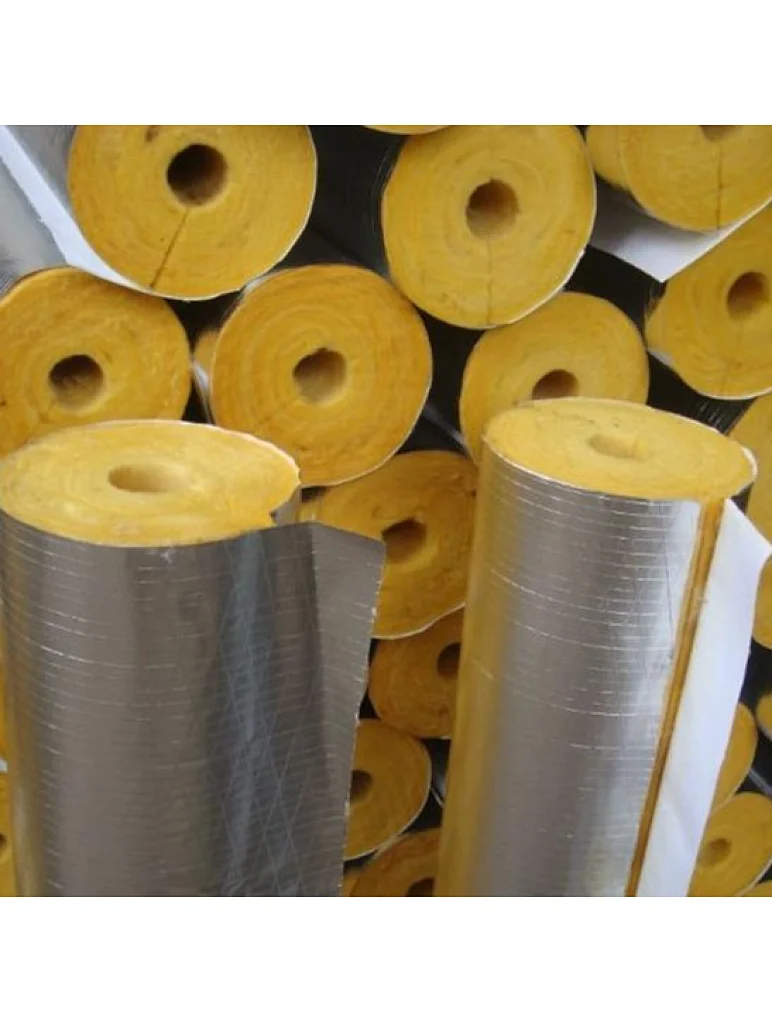

II.Perfect Glass Wool Pipe with Aluminum Foil
(1) Density: 48-80kg/m3
(2) Inner diameter: 19-1220mm
(3) Length: 1000mm
(4) Thickness: 20-100mm
Available Size:
| Diameter | ID | Thickness, mm | ||||||||||||||
| (*) Inch | MM | 25 | 30 | 40 | 50-80 | 90 | 100 | 125 | 140 | 150 | 175 | 200 | ||||
| 1/2 | 22 | ü | ü | ü | ü | ü | ü | ü | ü | ü | ü | ü | ||||
| 3/4 | 28 | ü | ü | ü | ü | ü | ü | ü | ü | ü | ü | ü | ||||
| 1 | 34 | ü | ü | ü | ü | ü | ü | ü | ü | ü | ü | ü | ||||
| 1-1/4 | 43 | ü | ü | ü | ü | ü | ü | ü | ü | ü | ü | ü | ||||
| 1-1/2 | 48 | ü | ü | ü | ü | ü | ü | ü | ü | ü | ü | ü | ||||
| 2 | 60 | ü | ü | ü | ü | ü | ü | ü | ü | ü | ü | ü | ||||
| 2-1/2 | 76 | ü | ü | ü | ü | ü | ü | ü | ü | ü | ü | ü | ||||
| 3 | 89 | ü | ü | ü | ü | ü | ü | ü | ü | ü | ü | ü | ||||
| 3-1/2 | 108 | ü | ü | ü | ü | ü | ü | ü | ü | ü | ü | ü | ||||
| 4 | 114 | ü | ü | ü | ü | ü | ü | ü | ü | ü | ü | ü | ||||
| 4-1/2 | 133 | ü | ü | ü | ü | ü | ü | ü | ü | ü | ü | |||||
| 5 | 140 | ü | ü | ü | ü | ü | ü | ü | ü | ü | ü | |||||
| 5-1/2 | 159 | ü | ü | ü | ü | ü | ü | ü | ü | ü | ü | |||||
| 6 | 169 | ü | ü | ü | ü | ü | ü | ü | ü | ü | ü | |||||
| 8 | 219 | ü | ü | ü | ü | ü | ü | ü | ü | ü | ||||||
| 10 | 273 | ü | ü | ü | ü | ü | ü | ü | ü | ü | ||||||
| 12 | 325 | ü | ü | ü | ü | ü | ü | ü | ü | ü | ||||||
| 14 | 356 | ü | ü | ü | ü | ü | ü | ü | ü | |||||||
| 16 | 409 | ü | ü | ü | ü | ü | ü | ü | ü | |||||||
| 18 | 460 | ü | ü | ü | ü | ü | ü | ü | ü | |||||||
| 20 | 508 | ü | ü | ü | ü | ü | ü | ü | ü | |||||||
| 21 | ü | ü | ü | ü | ü | ü | ü | ü | ||||||||
| 22 | 562 | ü | ü | ü | ü | ü | ü | ü | ||||||||
| 32 | 820 | ü | ü | ü | ü | |||||||||||
| Tested Content | Tested Value | Tested Method | |
| Density | 80kgs/m3 | GB/T 5480.3 | |
| Thickness | 50mm | GB/T 5480.3 | |
| Thermal Conductivity (W/mK) | ASTM C 518 (C 177) | ||
| 24°C | 0.033 | ||
| 38°C | 0.035 | ||
| 93°C | 0.04 | ||
| 149°C | 0.049 | ||
| 204°C | 0.061 | ||
| 260°C | 0.074 | ||
| 316°C | 0.089 | ||
| Maximum Service Temperature | 450°C | GB/T 17430, GB50264 | |
| Recommended Service Temperature | 400°C | ASTM C411-05, ASTM C447-03, GB50264 | |
| Non-Combustibility | |||
| Flame Diffustivity | 50 | ASTM E84-10 | |
| Flame Propagation: | 25 | ASTM E84-10 | |
| Fire Performance | Class A1 | GB 8624, EN13501-1, BS 476 Part4 | |
| Water Vapor Sorption (% by Weight) | ≤1% | ASTM C1104/1104M | |
| Water Vapor Sorption (% by Volume) | ≤1% | ASTM C1104/1104M | |
| Water Repellency (option available) | >99% | GB/T 10299 |
Facing
According to customer requirements, facing like alum foil, WPSK etc. can be applied to the surface for preventing moisture and radiation protection.

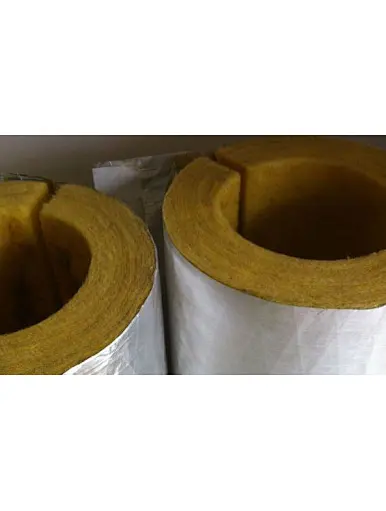

Glass wool pipe with Lamination
IV.Perfect Glass Wool Pipe Production Line

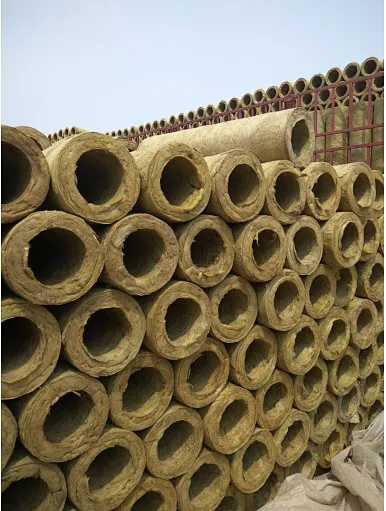

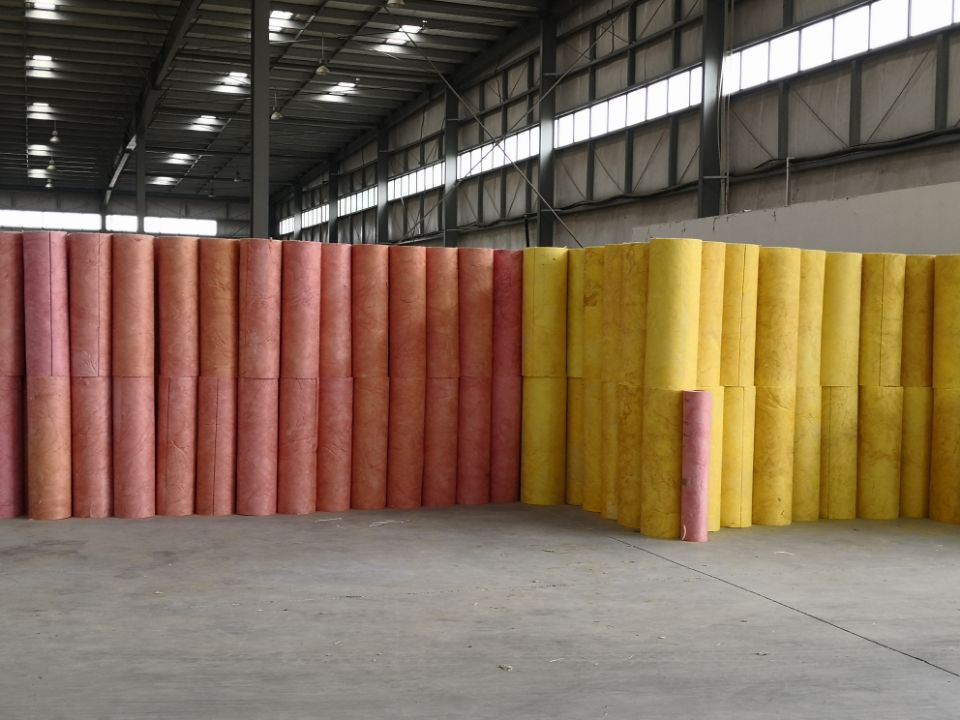

V.Our Factory
Jinan United Perfect Building Materials Corporation is a professional rock mineral wool manufacturer with CE FM & CCS certificate.
The products fully covered with glass wool board, glass wool blanket, glass wool pipe, etc. And our production capacity is more than 20000 tons monthly.
We have been providing customers with high-quality, cost-effective products, and quality services, and have a good reputation in the industry.
VI.Our Certification
Professional quality
Our glass wool factory is one of the top glass wool manufacturers in China, which produces
glass wool with CE, FM, ISO certified quality, and various colors and sizes are available.
VII.Our Exhibition

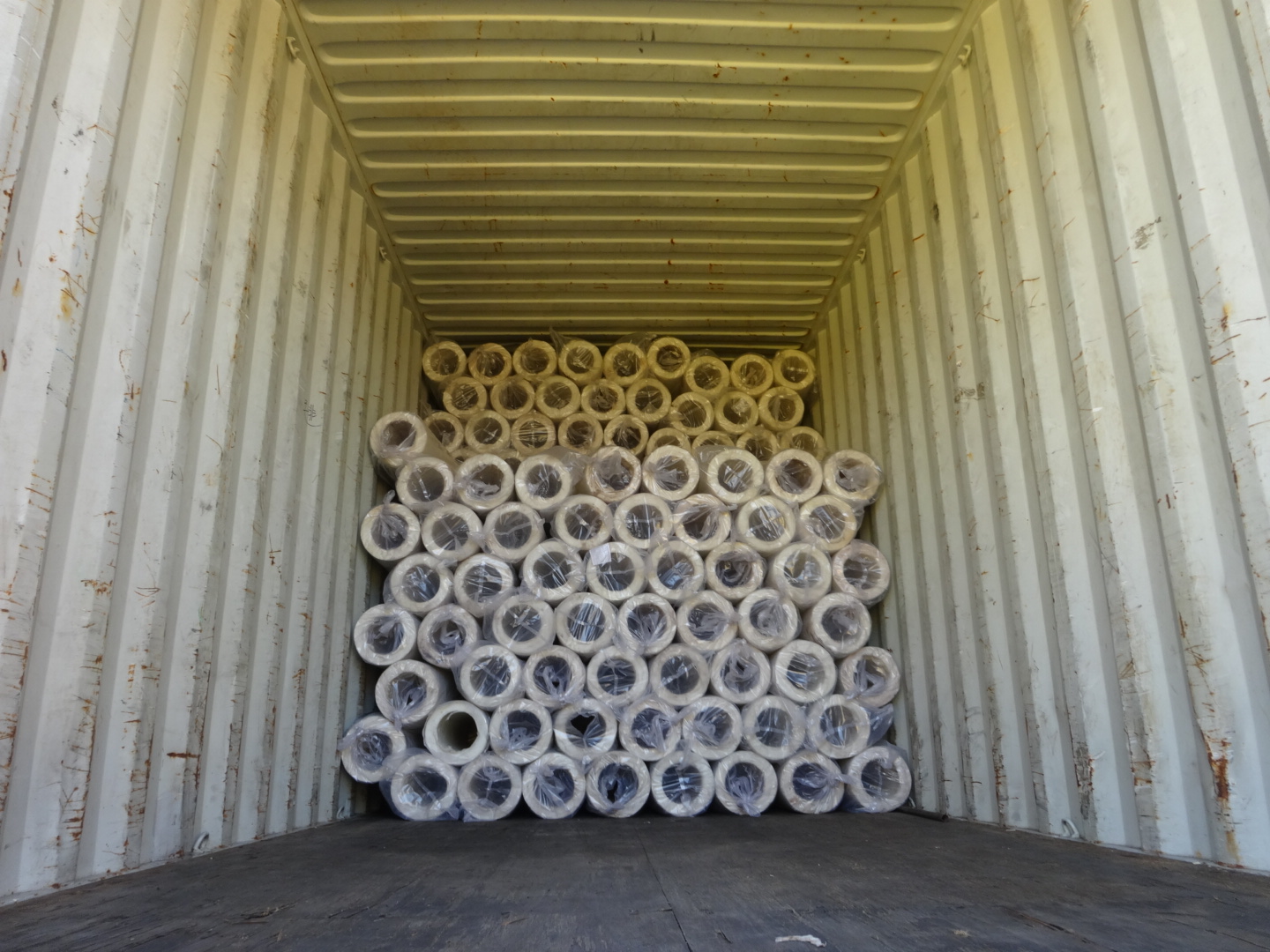

VIII.Perfect Glass Wool Pipe Packing & Shipping
IX.Our Service
1.OEM manufacturing welcome: products, packaging...
2. Support sample order.We will respond to your enquiry within 24 hours.
3. After sending, we will track the product every two days until you receive the product.
4. When you got your Commodities, test them and give me feedback. If you have any questions about this
glass wool board with a foil facing, please contact us and we will provide the way to solve the problem for you.
5. According to customer requirements, the surface of glass wool board can be compounded with aluminum foil facing, black tissue etc. for preventing moisture and radiation protection.
If you have any needs, please feel free to contact us, and look forward to cooperating with you.
