Glass wool board

Glass wool board
Glass wool board with aluminum foil
FOB
1
Quantity

Perfect Glass Wool Board with Aluminum Foil Description

Perfect complete glass wool production lines employing latest generation technology to manufacture glass wool board,

glass wool blanket and glass wool pipe for residential and industrial thermal and acoustic insulation needs, in compliance

with the top international standards (EN, DIN, ASTM).At the system HOT END, the raw materials are dosed, mixed, melted,

fiberized, impregnated with a special binder and formed into a primitive mat of very fine fiber glass. Continuous conveyors

transport the mat to the COLD END of the plant for binder polymerization. The product is then cut to shape and packed for shipping.

Perfect glass wool board production lines range from 5 to 700 tons/day capacity (100,000 to 1,500,000 tons/year),

and are fully automated thanks to PLC and Scada systems.

Perfect glass wool board lines comply with the latest international environmental regulations.

Perfect Glass Wool Board with Aluminum Foil Specification

Product Name

glass wool with aluminum foil

Color

yellow, white, pink, cholocate(brown).

Thickness

25mm-150mm

Width

1200mm

Length

2400mm

Face

kraft paper, FSK, black tissue etc.

Thermal conductivity

0.034-0.048 W/(m.k)

High temperature

450℃

Perfect Glass Wool Board with Aluminum Foil Details

                   Item

                    Unit

                   Index

                 Density

                 kg/m3

                  24-200

                Thickness

                    mm

                   5-100

                   Width

                    mm

                60-1220

                  Length

                    mm

              1200-2400

We have nine glass wool production lines with annual output of 110,000 tons. Our glass wool products are free of asbestos

and do not apply any composition harmful to environments such as CFCs, HCFCs and HFCs etc.

Glass Wool Board with Lamination

According to customer requirements, glass wool board can be laminated with single sided or double-sided aluminum foil,

aluminum glass cloth foil, black glass fiber tissue, WPSK etc.

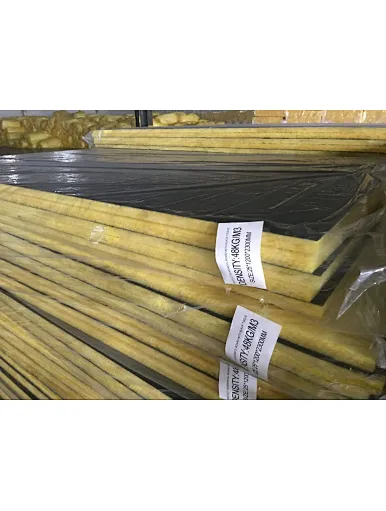

Perfect Glass Wool Board with Aluminum Foil Packing & Shipping

Perfect Glass Wool Board with Aluminum Foil Certification

Perfect Glass Wool Board with Aluminum Foil Advantage

Glass wool board has the performance of thermal insulation, noise absorption and acoustical isolation, especially for middle

or low frequency sound, which can cancel the noise and improve working environment.

1.Excellent thermal, acoustical properties

2.Light weight and easy to fabricate on job site

3.Non-combustible and fire-retardant

4.Very economical, especially when using thick layers of insulation

5.Durable, life-time and termite proof

Perfect Glass Wool Board with Aluminum Foil Application

Glass wool board is mainly used for separating wall in the high-grade building, ceiling, air conduct or inner wall of bellows
for thermal insurance, or machine shops for noise absorption or metal ceiling for control of heat, moisture etc.
