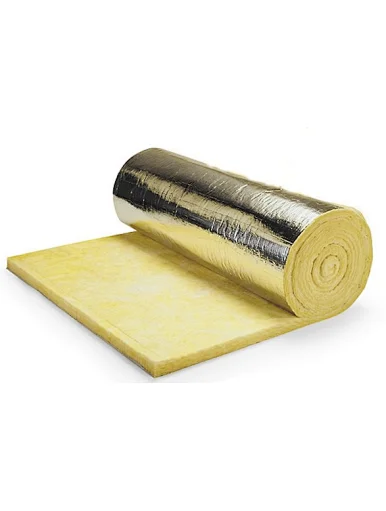

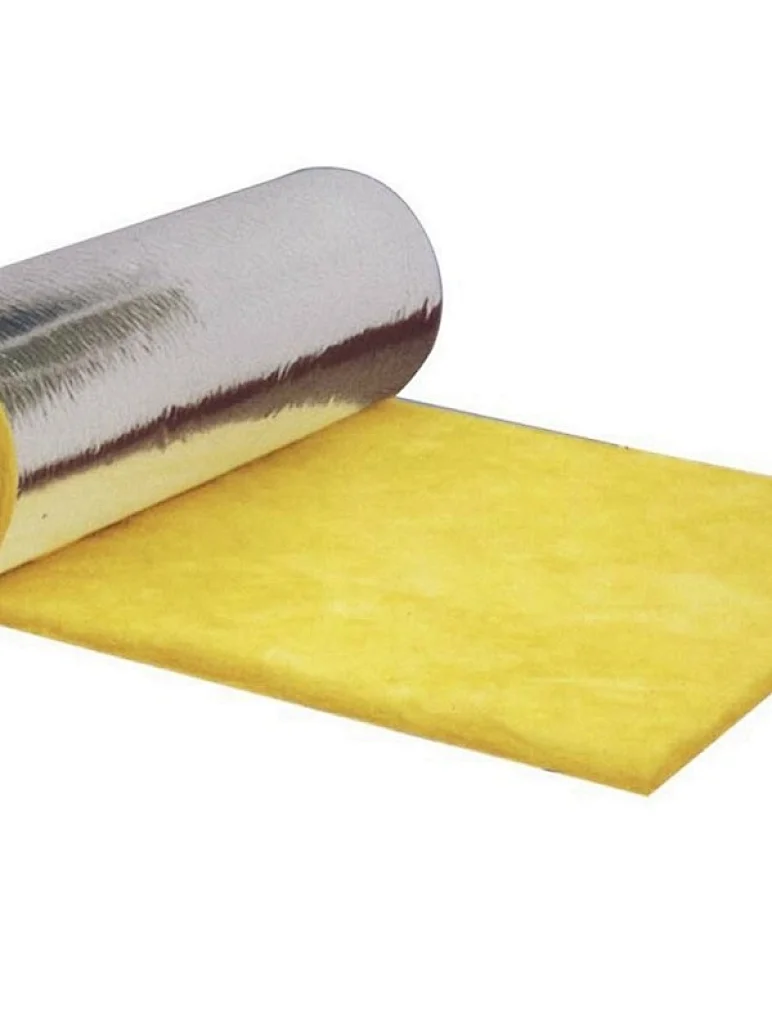

I.Perfect Glass Wool Blanket
Description

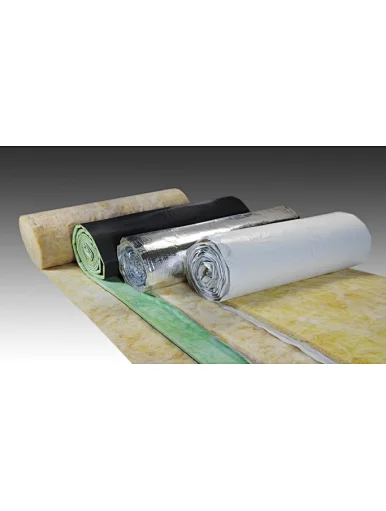

PERFECTglass wool blanket with aluminum foil is consisted of long, resilient fibers bonded together with a thermosetting resin to form a lightweight, flexible glass wool blanket. The blankets can be used together with foil vapor barrier (FSK, Vinyl woven fabric,Aluglass, WMP and Kraft Facing) accordingly to project designs or customer's requirement.
Our glass wool factory is one of the top glass wool manufacturers in China, which produces glass wool with CE certified quality and various colors and sizes are available.
Standards: EN13162, EN13172, ISO9001:2000, China GB STANDARDS.
II.Perfect Glass Wool Blanket with Aluminum Foil Specifications
| Product Code | Density (kg/m³) | Thickness (mm) | Width (mm) | Conductivty (W/m·K) | R-Value (m²·K/W) | Packing (pcs/PKG) | Loading Quantity | |
| GBL-10K40 | 10 | 40 | 1200 | 0.039 | 1.20 | 1 | Pls consult | |
| GBL-10K50 | 10 | 50 | 1200 | 0.039 | 1.90 | 1 | For | |
| GBL-12K50 | 12 | 50 | 1200 | 0.039 | 1.20 | 1 | confirmation | |
| GBL-12K75 | 12 | 75 | 1200 | 0.039 | 1.90 | 1 | ||
| GBL-12K100 | 12 | 100 | 1200 | 0.039 | 2.50 | 1 | ||
| GBL-12K150 | 12 | 150 | 1200 | 0.039 | 3.80 | 1 | ||
| GBL-12K200 | 12 | 200 | 1200 | 0.039 | 5.00 | 1 | ||
| GBL-16K50 | 16 | 50 | 1200 | 0.038 | 1.30 | 1 | ||
| GBL-16K75 | 16 | 75 | 1200 | 0.038 | 1.90 | 1 | ||
| GBL-16K100 | 16 | 100 | 1200 | 0.038 | 2.60 | 1 | ||
| GBL-24K50 | 24 | 50 | 1200 | 0.035 | 1.40 | 1 | ||
| GBL-24K75 | 24 | 75 | 1200 | 0.035 | 2.10 | 1 | ||
| GBL-24K100 | 24 | 100 | 1200 | 0.035 | 2.80 | 1 |
Conductivity Value tested under temperature in 23°C
Consult your local sales representative for other available sizes and specification.
Specification range
Density:8, 9, 10,12,16,20,24,32,40,48, 55, 60 kg/m3 etc.
Length : 5m-30m
Width : 1.2m (0.6m and 0.4m is available)
Thickness: 25mm-200mm
III.Physical Properties of GBL-16K50
| Tested Content | Tested Method | Tested Value | |
| Density | ASTM C612 | 80kgs/m³ | |
| Thickness | GB/T 17795-2008 | 50mm | |
| Average diameter of fibers | GB/T 17795-2008 | 6.0μm | |
| Coefficient of Heat Conductivity | EN12667 | 0.033W/m·K | |
| Thermal Resistance | ASTM C653 | 1.50m²·K/W | |
| Average NRC | EN ISO 354 | 1.00 | |
| Maximum Service Temperature | ASTM C411 | 170°C | |
| Corrosion Resistance | ASTM C665 | NO Chemical Reaction | |
| Mold Resistance | ASTM C665 | Mildew proof | |
| Moisture Absorption | ASTM C1104 | Less 3% by weight | |
| Humidity veneration Rate | ASTM E96 | Max 0.013g/24Hours·m² | |
| Non-Combustibility | ASTM E84 | Flame Propagation: 25; Flame Diffustivity: 50 |
IV.Perfect Glass Wool Blanket Production Line
V.Our Factory
Jinan United Perfect Building Materials Corporation is a professional rock mineral wool manufacturer with CE FM & CCS certificate.
The products fully covered with glass wool board, glass wool blanket, glass wool pipe, etc. And our production capacity is more than 20000 tons monthly.
We have been providing customers with high-quality, cost-effective products, and quality services, and have a good reputation in the industry.
VI.Our Certification
Professional quality
Our glass wool factory is one of the top glass wool manufacturers in China, which produces
glass wool with CE, FM, ISO certified quality, and various colors and sizes are available.
VII.Our Exhibition
VIII.Perfect Glass Wool Blanket Packing & Shipping
IX.Our Service
1.OEM manufacturing welcome: products, packaging...
2. Support sample order.We will respond to your enquiry within 24 hours.
3. After sending, we will track the product every two days until you receive the product.
4. When you got your Commodities, test them and give me feedback. If you have any questions about this
glass wool board with a foil facing, please contact us and we will provide the way to solve the problem for you.
5. According to customer requirements, the surface of glass wool board can be compounded with aluminum foil facing, black tissue etc. for preventing moisture and radiation protection.
If you have any needs, please feel free to contact us, and look forward to cooperating with you.
