FSV heat sealing foil (Foil-scrim-PE)

FSV heat sealing foil (Foil-scrim-PE)
FSV heat sealing foil (Foil-scrim-PE)
FOB
1 square meter
China
10-15Day

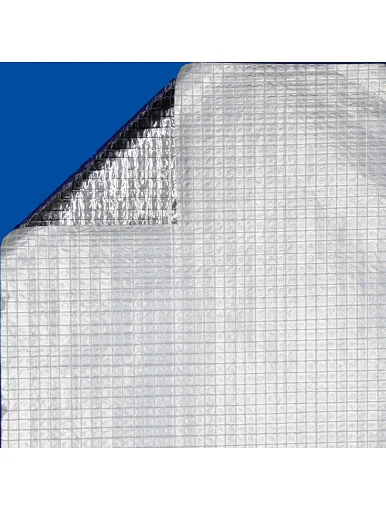

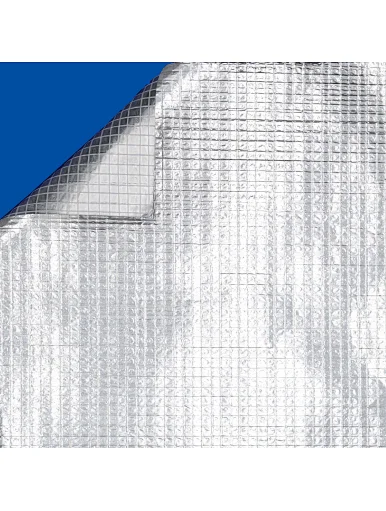

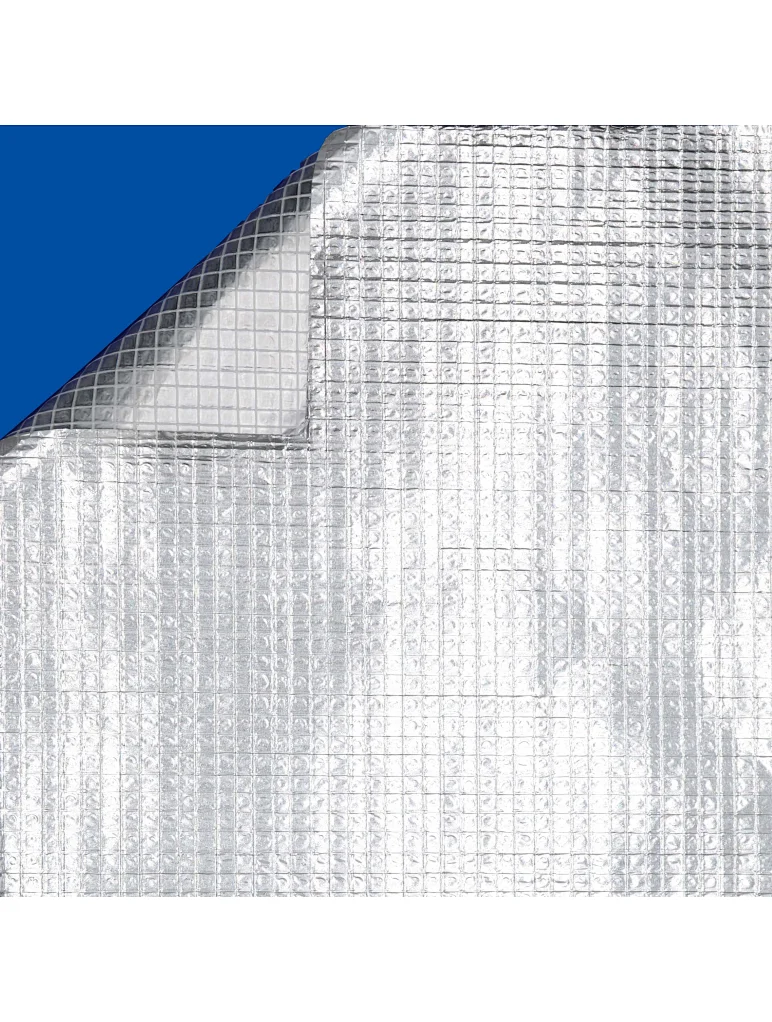

FSV heat sealing foil (Foil-scrim-PE) / Heat-sealing foil lamination is suitable for online lamination of glasswool, rockwool, mineral wool insulation. Thicker heat-sealable PE. No need applying extra adhesive. Good corrosion resistance. Black coating with fireproof & anti-corrosion performance can be added for the alum foil.
Quantity

1. Products List

Product

Description

Application

FSV-0708BFoil 7u / 2-way Scrim 5x5mm / PE 25u

Premium Grade heat-sealing foil-scrim facing.

Suitable for in-line lamination with glasswool, rockwool,

mineral wool, and foam insulation.

Thicker foil and very closer 2-way scrim.

FSV-1208BFoil 12u / 2-way Scrim 5x5mm / PE 25u

Premium Grade heat-sealing foil-scrim facing.

Suitable for in-line lamination with glasswool, rockwool,

mineral wool, and foam insulation.

Thicker foil and very closer 2-way scrim.

FSV-1508BFoil 15u / 2-way Scrim 5x5mm / PE 25u

Premium Grade heat-sealing foil-scrim facing.

Suitable for in-line lamination with glasswool, rockwool,

mineral wool, and foam insulation.

Thicker foil and very closer 2-way scrim.

FSV-1808BFoil 18u / 2-way Scrim 5x5mm / PE 25u

Premium Grade heat-sealing foil-scrim facing.

Suitable for in-line lamination with glasswool, rockwool,

mineral wool, and foam insulation.

Thicker foil and very closer 2-way scrim.

2. Typical Physical Properties

Foil-Kraft Facing / Foil-Scrim-Kraft Facing

Product

Basic Weight

(g/m2)

WVTR

ng/N.s

Tensile MD

(N/25mm)

Tensile XD

(N/25mm)

Bursting

Strength (N)

Fire Rating

FSV-0708B

50

1.15

55

55

25

---

FSV-1208B

64

1.15

60

60

30

---

FSV-1508B

72

1.15

65

65

33

---

FSV-1808B

80

1.15

70

70

35

---

IMPORTANT NOTE:

1. The data above are typical values only, and should not be used for specifications purpose.

2. Tolerance: Weight and Thickness: ±10%; Width: ±3mm; Length: Log Roll: ±0.3m, Jumbo Roll ±0.5%.

3. The products should be stored at room temperature, kept away from wet and heat source.

4. The users should take test and do trial-application on the above products before coming into application so as to witness and ensure suitability for their special purpose and technique.

* Please kindly contact with sales staff confirm the specific specifications.
