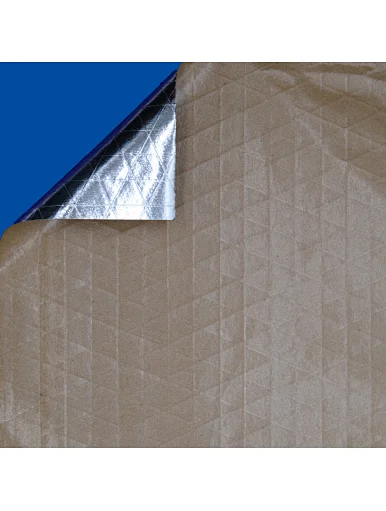

FSKV (Heat sealing foil-scrim-kraft-PE facings)

FSKV (Heat sealing foil-scrim-kraft-PE facings)
FSKV (Heat sealing foil-scrim-kraft-PE facings)
FOB
1 square meter
China
10-15Day
Perfect Heat-sealing foil lamination is suitable for online lamination of glasswool, rockwool, mineral wool, rubber foam insulation etc. with thicker heat-sealable PE. No need applying extra adhesive. Good corrosion resistance.
Quantity

Perfect Heat-sealing foil lamination is suitable for online lamination of glasswool, rockwool, mineral wool, rubber foam insulation etc. with thicker heat-sealable PE. No need applying extra adhesive. Good corrosion resistance.

1. Products List

Product

Description

Application

FSKV-7150AFoil 7u / 3-way Scrim 8 x12 / Kraft 50gsm / PE 25u

Utility Grade, 3-way scrim heat-sealing FSK facing.

Suitable for in-line lamination of glasswool, rockwool, mineral wool insulation.

No need applying extra adhesive.

Good corrosion resistance.

FSKV-7150BFoil 7u / 2-way Scrim 12.5x12.5mm / Kraft 50gsm / PE 25u

Utility Grade, 3-way scrim heat-sealing FSK facing.

Suitable for in-line lamination of glasswool, rockwool, mineral wool insulation.

No need applying extra adhesive.

Good corrosion resistance.

FSKV-7160AFoil 7u / PE / 3-way Scrim 8 x12 / Kraft 60gsm / PE 25u

Utility Grade, 3-way scrim heat-sealing FSK facing.

Suitable for in-line lamination of glasswool, rockwool, mineral wool insulation.

No need applying extra adhesive.

Good corrosion resistance.

FSKV-7160BFoil 7u / 2-way Scrim 12.5x12.5mm / Kraft 60gsm / PE 25u

Utility Grade, 3-way scrim heat-sealing FSK facing.

Suitable for in-line lamination of glasswool, rockwool, mineral wool insulation.

No need applying extra adhesive.

Good corrosion resistance.

2. Typical Physical Properties

Foil-Kraft Facing / Foil-Scrim-Kraft Facing

Product

Basic Weight

(g/m2)

WVTR

ng/N.s

Tensile MD

(N/25mm)

Tensile XD

(N/25mm)

Bursting

Strength (N)

Fire Rating

FSKV-7150A

102

1.15

125

65

30

---

FSKV-7150B

102

1.15

125

70

30

---

FSKV-7160A

112

1.15

140

75

33

---

FSKV-7160B

112

1.15

140

80

33

---

IMPORTANT NOTE:

1. The data above are typical values only, and should not be used for specifications purpose.

2. Tolerance: Weight and Thickness: ±10%; Width: ±3mm; Length: Log Roll: ±0.3m, Jumbo Roll ±0.5%.

3. The products should be stored at room temperature, kept away from wet and heat source.

4. The users should take test and do trial-application on the above products before coming into application so as to witness and ensure suitability for their special purpose and technique.

* Please kindly contact with sales staff confirm the specific specifications.
