FSK Foils (Reinforced alum foil kraft)

FSK Foils (Reinforced alum foil kraft)
FSK-7150A
FOB
1 square meter
China
7-15Day
Perfect foil is a professional supplier of insulation facings to the duct wrap and duct board market. Our line of FSK facings include FSK-7150A and FSK-R7150A etc. for duct wrap and duct board. These facings provide low emittance surfaces and protect the insulating material from physical abuse and moisture intrusion.

Foil-Kraft Facing/Foil-Scrim-Kraft Facing is mainly used for insulation & vapor barrier materials for wrapping glass wool duct, rock wool duct and foam insulation, etc. It is also suitable for other insulation applications where a general use vapor retarder is needed, because of their low emissivity.
Quantity

Perfect foil is a professional supplier of insulation facings to the duct wrap and duct board market. Our line of FSK facings include FSK-7150A and FSK-R7150A etc. for duct wrap and duct board. These facings provide low emittance surfaces and protect the insulating material from physical abuse and moisture intrusion.

Foil-Kraft Facing/Foil-Scrim-Kraft Facing is mainly used for insulation & vapor barrier materials for wrapping glass wool duct, rock wool duct and foam insulation, etc. It is also suitable for other insulation applications where a general use vapor retarder is needed, because of their low emissivity.

1. Products List

Product

Description

Application

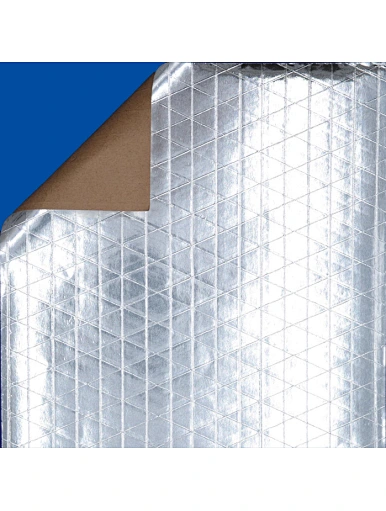

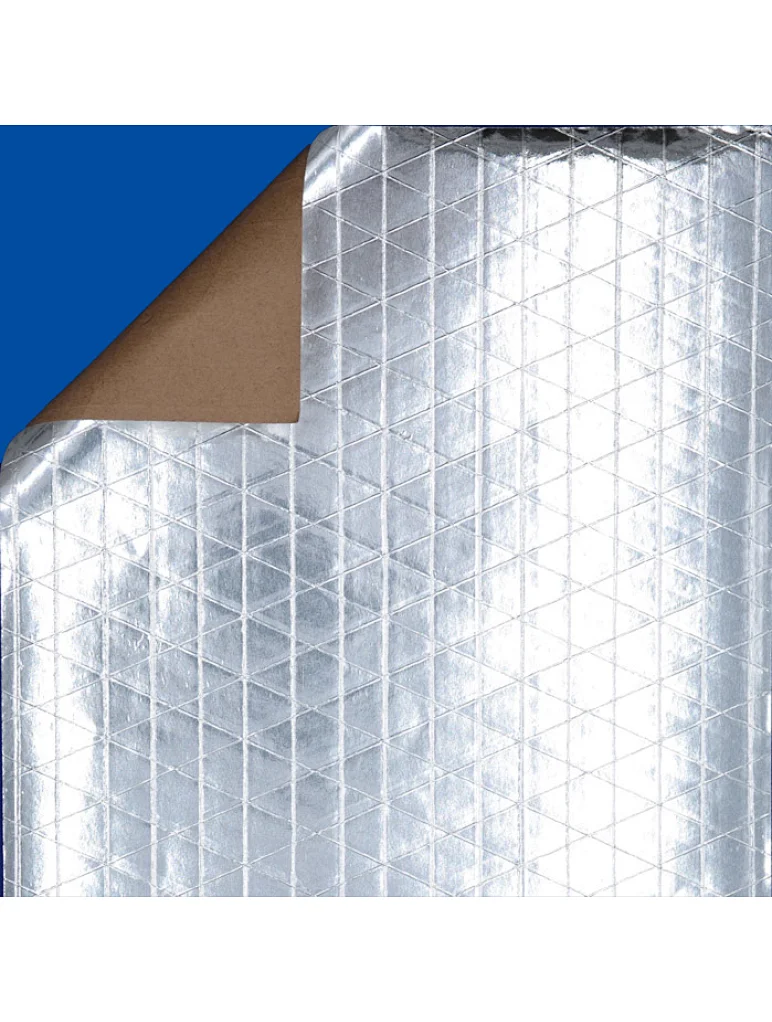

FSK-7150A

Foil: 7u / 3-way Scrim 8 x12 / 100mm /

PE / Kraft: 50gsm

Utility grade, 3-way scrim FSK Facing.

Suitable for duct wrap andmetal building as well as pipe insulation.

FSK-7160A

Foil: 7u / 3-way Scrim 8 x12 / 100mm /

PE / Kraft: 60gsm

Commercial grade, 3way scrim FSK Facing.

Suitable for duct wrapand metal building as well as pipe insulation. Thick Kraft.

FSK-7180A

Foil: 7u / 3-way Scrim 8 x12 / 100mm /

PE / Kraft: 80gsm

High-grade, 3-way scrim FSK Facing.

Good for duct wrap and metalbuilding as well as pipe insulation.

Thicker Kraft and higher strength.

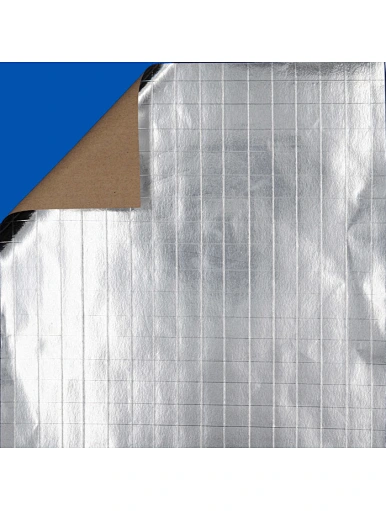

FSK-7150B

Foil: 7u / 2-way Scrim 12.5 x12.5mm /

PE / Kraft: 50gsm

Utility grade, 2-way scrim FSK Facing.

Suitable for duct wrap andmetal building as well as pipe insulation.

FSK-7160B

Foil: 7u / 2-Way Scrim 12.5 x12.5mm /

PE / Kraft: 60gsm

Commercial grade, 2-way scrim FSK Facing.

Suitable for duct wrapand metal building as well as pipe insulation.

Thick Kraft.

FSK-7180B

Foil: 7u / 2-way Scrim 12.5 x12.5mm /

PE / Kraft: 80gsm

High-grade, 2-way scrim FSK Facing,

Good for duct wrap and metalbuilding as well as pipe insulation.

Thicker Kraft and higher strength.

FSK-R7150A

Foil: 7u / 3-way Scrim 8 x12/100mm /

FR Glue / Kraft: 50gsm

Utility F/R Grade, 3-way scrim FSK Facing.

Suitable for duct wrap and metal building as well as pipe insulation.

Good fire rating.BS 476 Part 6 & 7 passed.

FSK-R7160A

Foil: 7u / 3-way Scrim 8 x12/100mm /

FR Glue / Kraft: 60gsm

Commercial F/R Grade, 3 way scrim FSK Facing.

Suitable for duct wrap and metal building aswell as pipe insulation.

Good fire rating and thick Kraft.

BS 476 Part6 & 7 passed.

FSK-R7150B

Foil: 7u / 2-way Scrim 12.5x12.5mm /

FR Glue / Kraft: 50gsm

Utility F/R Grade, 2-way scrim FSK Facing.

Suitable for duct wrap and metal building aswell as pipe insulation.

Good fire rating.BS 476 Part 6 & 7 passed.

FSK-R7160B

Foil: 7u / 2-way Scrim 12.5x12.5mm /

FR Glue / Kraft: 60gsm

Commercial F/R Grade, 2-way scrim FSK Facing.

Suitable for duct wrap and metal building aswell as pipe insulation.

Good fire rating and thicker Kraft.

BS 476 Part 6 & 7 passed.

2. Typical Physical Properties

Foil-Kraft Facing / Foil-Scrim-Kraft Facing

Product

Basic Weight

(g/m2)

WVTR

ng/N.s

Tensile MD

(N/25mm)

Tensile XD

(N/25mm)

Bursting

Strength (N)

Fire Rating

FSK-7150A

85

5.75

115

51

30

---

FSK-7160A

95

5.75

130

60

30

---

FSK-7180A

115

5.75

150

75

40

---

FSK-7150B

85

5.75

115

55

30

---

FSK-7160B

95

5.75

130

70

30

---

FSK-7180B

115

5.75

150

80S

40

---

FSK-R7150A

76

5.75

110

50

30

Class O

FSK-R7160A

86

5.75

130

60

30

Class O

FSK-R7150B

76

5.75

115

55

30

Class O

FSK-R7160B

86

5.75

130

70

30

Class O

IMPORTANT NOTE:

1. The data above are typical values only, and should not be used for specifications purpose.

2. Tolerance: Weight and Thickness: ±10%; Width: ±3mm; Length: Log Roll: ±0.3m, Jumbo Roll ±0.5%.

3. The products should be stored at room temperature, kept away from wet and heat source.

4. The users should take test and do trial-application on the above products before coming into application so as to witness and ensure suitability for their special purpose and technique.

* Please kindly contact with sales staff confirm the specific specifications.
