1. Product List
Product | Description | Application |
FW-760 | Foil 7u / PE / Woven Fabric 60gsm | The surface of aluminum foil is smooth and smooth, without wrinkles, and without any chemical components that may be toxic or harmful. Small weight, easy to install and use, more environmentally friendly and energy saving, more waterproof and heat insulation than cloth; High strength, tear resistance, wear resistance, anti - aging. |
FWF-7607 | Foil 7u / PE / Woven Fabric 60gsm / PE / Foil 7u | The surface of aluminum foil is smooth and smooth, without wrinkles, and without any chemical components that may be toxic or harmful. Small weight, easy to install and use, more environmentally friendly and energy saving, more waterproof and heat insulation than cloth; High strength, tear resistance, wear resistance, anti - aging. |
FWV-7603B | Foil 7u / PE / Woven Fabric 60gsm / PE Coating | The surface of aluminum foil is smooth and smooth, without wrinkles, and without any chemical components that may be toxic or harmful. Small weight, easy to install and use, more environmentally friendly and energy saving, more waterproof and heat insulation than cloth; High strength, tear resistance, wear resistance, anti - aging. |

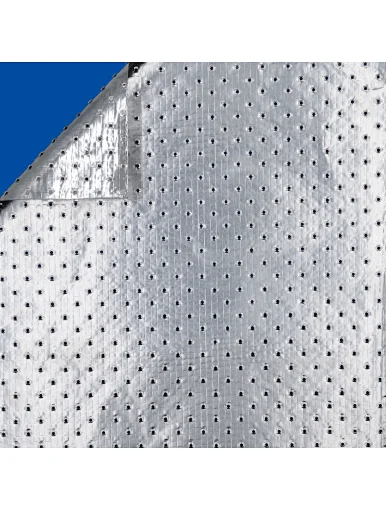

FWF-7607P Punching | Foil 7u / PE / Woven Fabric 60gsm / PE / Foil 7u | The surface of aluminum foil is smooth and smooth, without wrinkles, and without any chemical components that may be toxic or harmful. Small weight, easy to install and use, more environmentally friendly and energy saving, more waterproof and heat insulation than cloth; High strength, tear resistance, wear resistance, anti - aging. |
MW-860 | PET:8u / PE / LDPE Woven: 60gsm | Economic Grade foil thermal insulation used for metal-building thermal insulation. |
2. Typical Physical Properties
Foil-Kraft Facing / Foil-Scrim-Kraft Facing | ||||||
Product | Basic Weight (g/m2) | WVTR ng/N.s | Tensile MD (N/25mm) | Tensile XD (N/25mm) | Bursting Strength (N) | Fire Rating |
| FW-760 | 100 | 1.15 | 270 | 190 | 140 | --- |
| FWF-7607 | 140 | 1.15 | 360 | 250 | 150 | --- |
| FWV-7603B | 135 | 1.15 | 345 | 240 | 145 | --- |
FWF-7607P Punching | 135 | 1.15 | 330 | 230 | 140 | --- |
MW-860 | 90 | 1.15 | 275 | 185 | 128 | --- |
IMPORTANT NOTE:
1. The data above are typical values only, and should not be used for specifications purpose.
2. Tolerance: Weight and Thickness: ±10%; Width: ±3mm; Length: Log Roll: ±0.3m, Jumbo Roll ±0.5%.
3. The products should be stored at room temperature, kept away from wet and heat source.
4. The users should take test and do trial-application on the above products before coming into application so as to witness and ensure suitability for their special purpose and technique.
* Please kindly contact with sales staff confirm the specific specifications.
