Roof Sarking

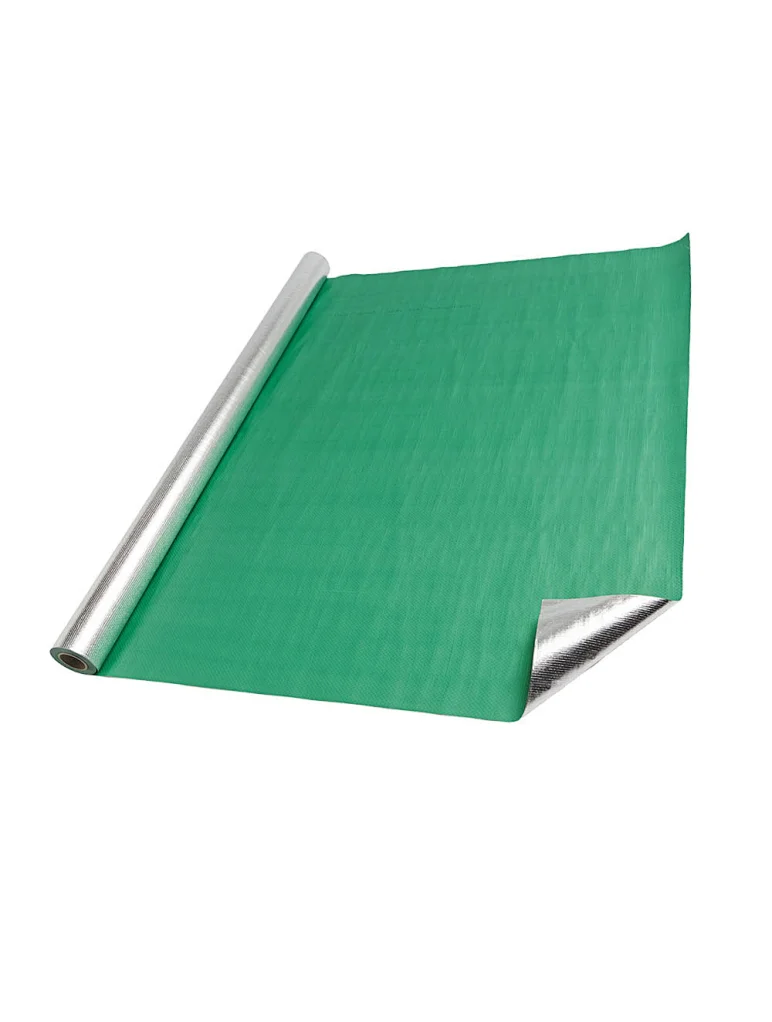

Roof sarking is a flexible laminated membrane for use under roofing for tiles for added protection to the roof’s structural components. It is a membrane that contains various materials, such as polystyrene, reflective foil or felt, depending upon the brand of it.
PerfectSark is a kind of radiant barrier, designed for multi-purpose use as both roof sarking and a wall wrap. It is suitable for use in all roof and wall types. The reflective foil side provides extra R-value when installed facing an air cavity, and the multi-layer structure provides superior strength, flexibility and durability. Classified as a water barrier and Class 2 vapour barrier, PerfectSark acts as a barrier to air, radiant heat, moisture ingress and dust penetration.
Features and Benefits
Extra Heavy Duty
The all-round weather barrier for your home
Superior strength, puncture resistant
Water and Air Barrier, Class 2 Vapour Barrier
Low Flammability, suitable for all BALs in bushfire-prone areas
Product Details
| Dimensions | |||
| Coverage Area (sqm.) | 81 m² | Product Thickness (mm.) | 0.12 mm |
| Product Width (m.) | 1.35 m | Unrolled length (m.) | 60 m |
| Details | |||
| Application Method | Nail | Color Family | Blue/Green |
| Features | Mildew Resistant,Water Resistant | Fire Rating (UL 790) | Class A |
| Material | Polypropylene | Product Weight (kg/roll) | 13.02 kg |
| Returnable | 90-Day | Roofing Product Type | Foil / PP woven |
| Squares (sqm)/Roll | 81 | Surface Recommended | Wood |
| Texture | Smooth | Underlayment/Barrier Type | Foil coated woven fabric |
| Warranty / Certifications | |||
| Manufacturer Warranty | 10 YEARS | ||
Product | Description | Application |
FW-760 | Foil 7u / PE / Woven Fabric 60gsm | The surface of aluminum foil is smooth and smooth, without wrinkles, and without any chemical components that may be toxic or harmful. Small weight, easy to install and use, more environmentally friendly and energy saving, more waterproof and heat insulation than cloth; High strength, tear resistance, wear resistance, anti - aging. |
FWF-7607 | Foil 7u / PE / Woven Fabric 60gsm / PE / Foil 7u | The surface of aluminum foil is smooth and smooth, without wrinkles, and without any chemical components that may be toxic or harmful. Small weight, easy to install and use, more environmentally friendly and energy saving, more waterproof and heat insulation than cloth; High strength, tear resistance, wear resistance, anti - aging. |
FWV-7603B | Foil 7u / PE / Woven Fabric 60gsm / PE Coating | The surface of aluminum foil is smooth and smooth, without wrinkles, and without any chemical components that may be toxic or harmful. Small weight, easy to install and use, more environmentally friendly and energy saving, more waterproof and heat insulation than cloth; High strength, tear resistance, wear resistance, anti - aging. |
FWF-7607P Punching | Foil 7u / PE / Woven Fabric 60gsm / PE / Foil 7u | The surface of aluminum foil is smooth and smooth, without wrinkles, and without any chemical components that may be toxic or harmful. Small weight, easy to install and use, more environmentally friendly and energy saving, more waterproof and heat insulation than cloth; High strength, tear resistance, wear resistance, anti - aging. |
MW-860 | PET:8u / PE / LDPE Woven: 60gsm | Economic Grade foil thermal insulation used for metal-building thermal insulation. |
2. Typical Physical Properties
Foil-Kraft Facing / Foil-Scrim-Kraft Facing | ||||||
Product | Basic Weight (g/m2) | WVTR ng/N.s | Tensile MD (N/25mm) | Tensile XD (N/25mm) | Bursting Strength (N) | Fire Rating |
| FW-760 | 100 | 1.15 | 270 | 190 | 140 | --- |
| FWF-7607 | 140 | 1.15 | 360 | 250 | 150 | --- |
| FWV-7603B | 135 | 1.15 | 345 | 240 | 145 | --- |
FWF-7607P Punching | 135 | 1.15 | 330 | 230 | 140 | --- |
MW-860 | 90 | 1.15 | 275 | 185 | 128 | --- |
IMPORTANT NOTE:
1. The data above are typical values only, and should not be used for specifications purpose.
2. Tolerance: Weight and Thickness: ±10%; Width: ±3mm; Length: Log Roll: ±0.3m, Jumbo Roll ±0.5%.
3. The products should be stored at room temperature, kept away from wet and heat source.
4. The users should take test and do trial-application on the above products before coming into application so as to witness and ensure suitability for their special purpose and technique.
* Please kindly contact with sales staff confirm the specific specifications.
