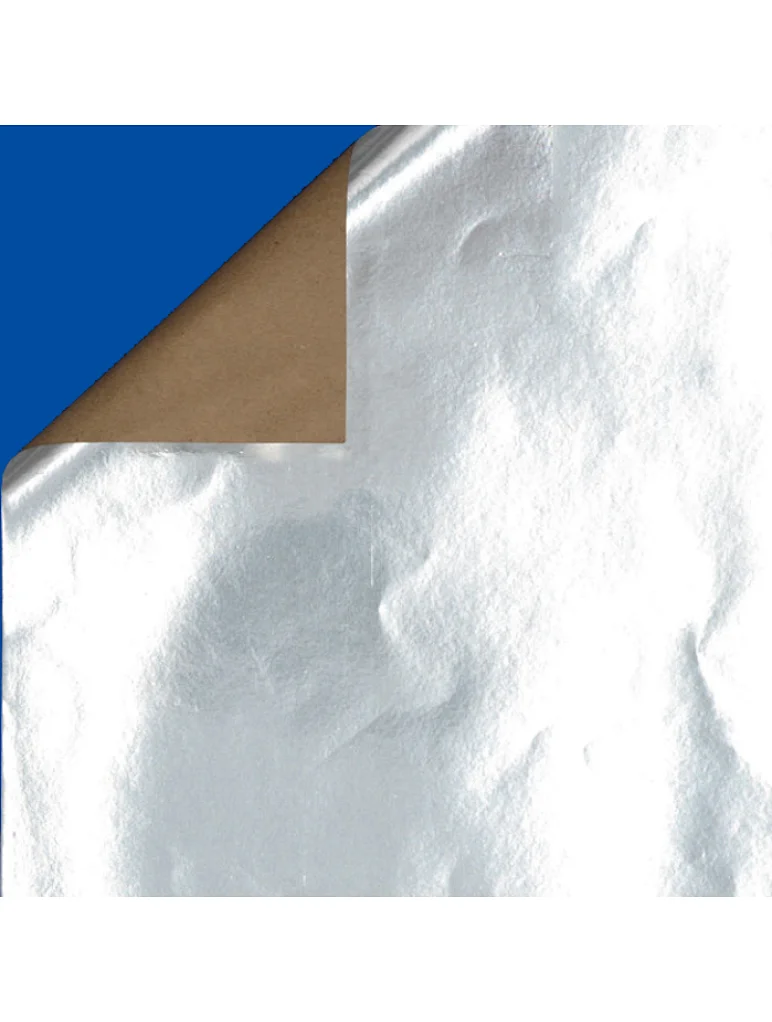

Foil-Kraft Facing is mainly used for insulation & vapor barrier materials for wrapping glass wool duct, rock wool duct and foam insulation, etc. It is also suitable for other insulation applications where a general use vapor retarder is needed, because of their low emissivity.
Perfect foil is a professional supplier of insulation facings to the economic duct wrap and duct board market. Our line of FK facings include FK-750 and FK770 etc. for duct wrap and duct board. These facings are economic and can provide low emittance surfaces and protect the insulating material from physical abuse and moisture intrusion.
Foil-Kraft Facing is mainly used for insulation & vapor barrier materials for wrapping glass wool duct, rock wool duct and foam insulation, etc. It is also suitable for other insulation applications where a general use vapor retarder is needed, because of their low emissivity.Perfect foil is a professional supplier of insulation facings to the economic duct wrap and duct board market.
1. Products List
Product | Description | Application |
| FK-750 | Foil: 7u / PE / Kraft: 50gsm | Utility grade Foil-Kraft Facing for duct wrap in HVAC system. No scrim inside. |
| FK-760 | Foil: 7u / PE / Kraft: 60gsm | Utility grade Foil-Kraft Facing for duct wrap in HVAC system. No scrim inside, thick Kraft. |
| FK-770 | Foil: 7u / PE / Kraft: 70gsm | Commercial grade Foil-Kraft Facing for duct wrap in HVAC system. No scrim inside, thick Kraft. |
2. Typical Physical Properties
Foil-Kraft Facing / Foil-Scrim-Kraft Facing | ||||||
Product | Basic Weight (g/m2) | WVTR ng/N.s | Tensile MD (N/25mm) | Tensile XD (N/25mm) | Bursting Strength (N) | Fire Rating |
FK-750 | 75 | 5.75 | 85 | 50 | 20 | --- |
FK-760 | 85 | 5.75 | 105 | 55 | 20 | --- |
FK-770 | 95 | 5.75 | 112 | 60 | 25 | --- |
IMPORTANT NOTE:
1. The data above are typical values only, and should not be used for specifications purpose.
2. Tolerance: Weight and Thickness: ±10%; Width: ±3mm; Length: Log Roll: ±0.3m, Jumbo Roll ±0.5%.
3. The products should be stored at room temperature, kept away from wet and heat source.
4. The users should take test and do trial-application on the above products before coming into application so as to witness and ensure suitability for their special purpose and technique.
* Please kindly contact with sales staff confirm the specific specifications.
