Black Fiberglass Tissue

Black Fiberglass Tissue
Black Fiberglass Nonwoven BGT
FOB
1 square meter
China
7-15Day

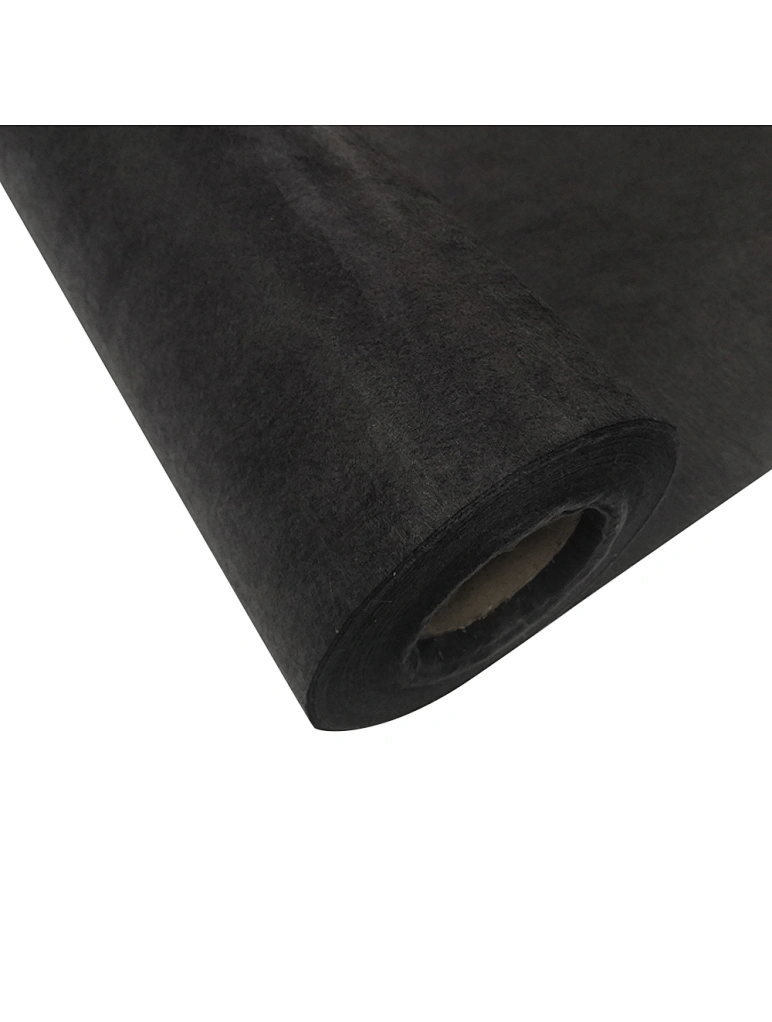

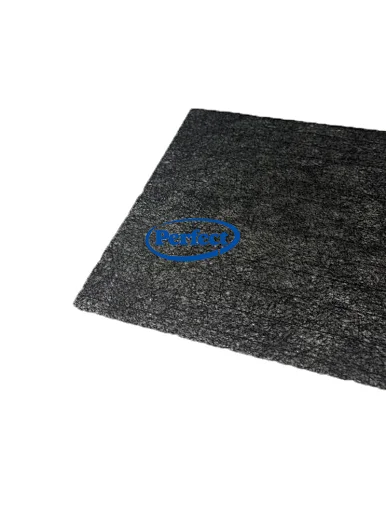

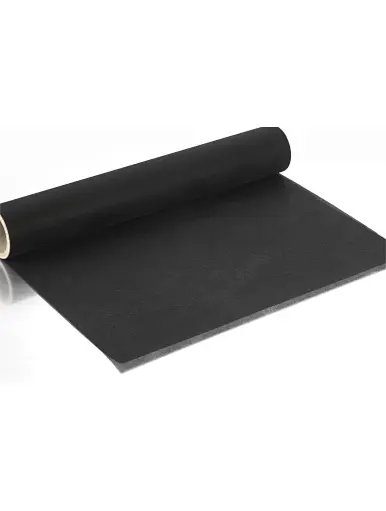

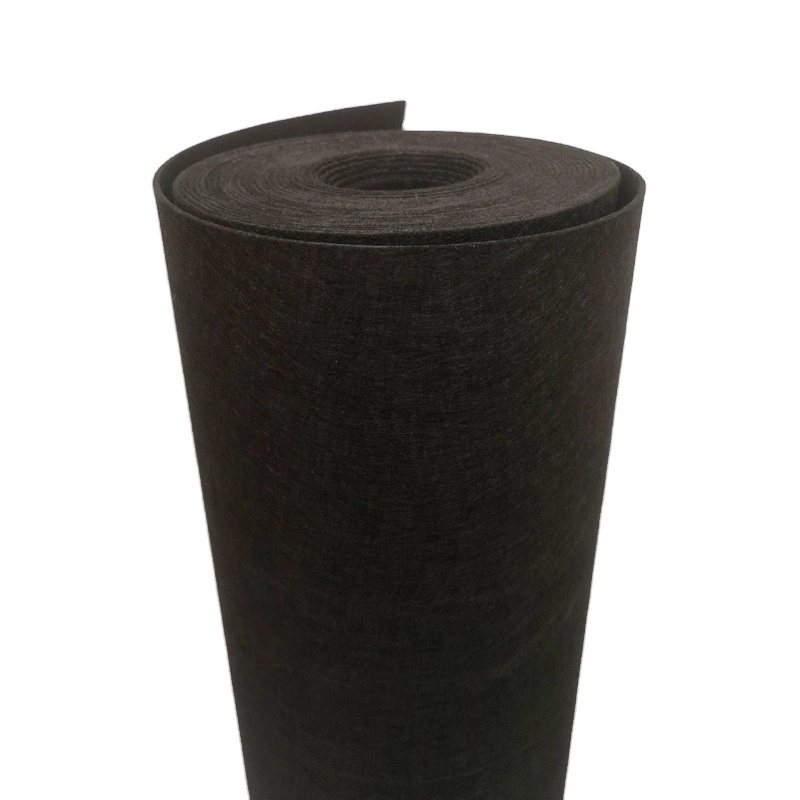

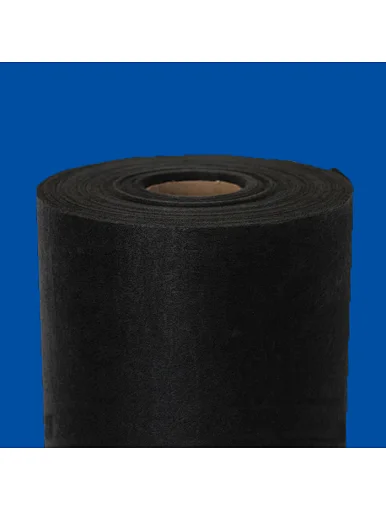

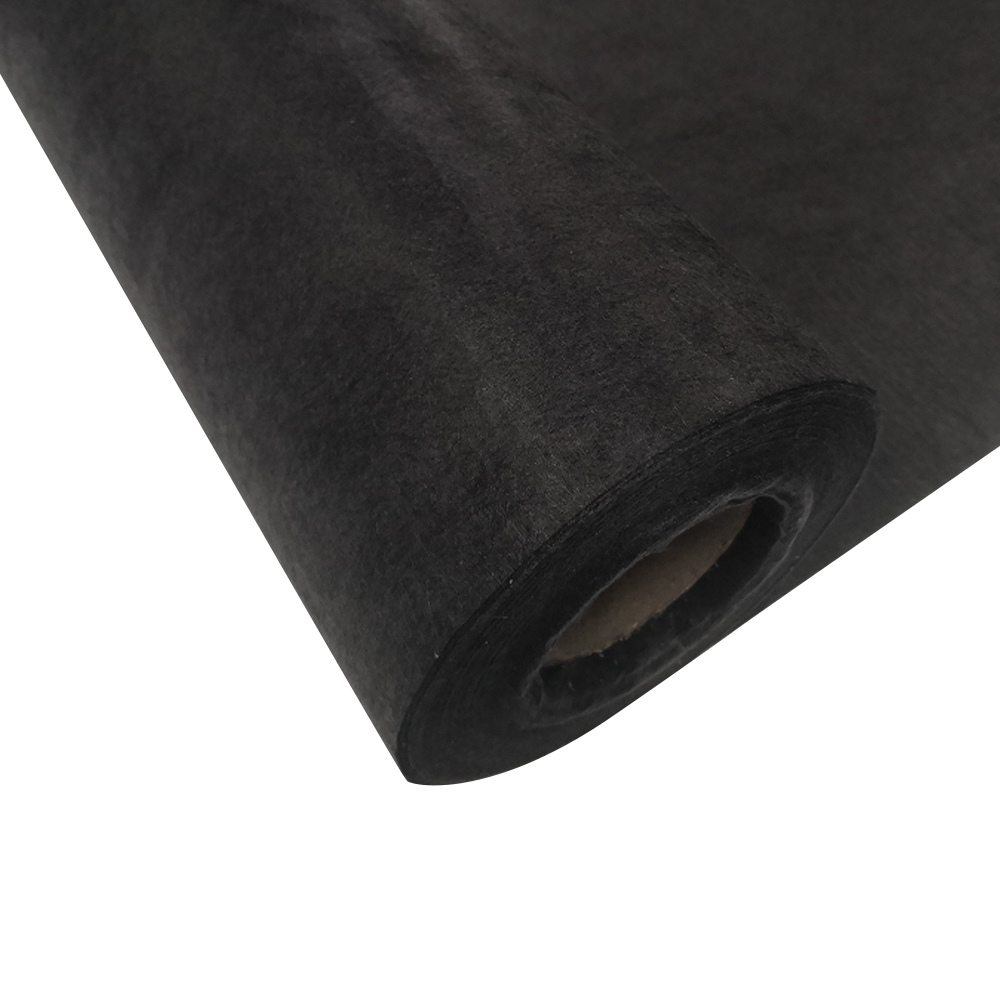

Black fiberglass non-woven (black fiberglass tissue, fiberglass veil etc.) is suitable as a surface lamination for fiberglass wool and rock wool thermal insulation etc., as well as an acoustic insulation material for wooden acoustic board or aluminum ceiling panels.
Quantity

Black fiberglass non-woven (Black fiberglass non-woven (black fiberglass tissue, fiberglass veil etc.) is used as a facer component in duct insulation systems and provide a smooth surface and acoustical and thermal performance. Black fiberglass veil is suitable as a surface lamination for fiberglass wool and rock wool thermal insulation etc., as well as an acoustic insulation material for wooden or aluminum ceiling panels.

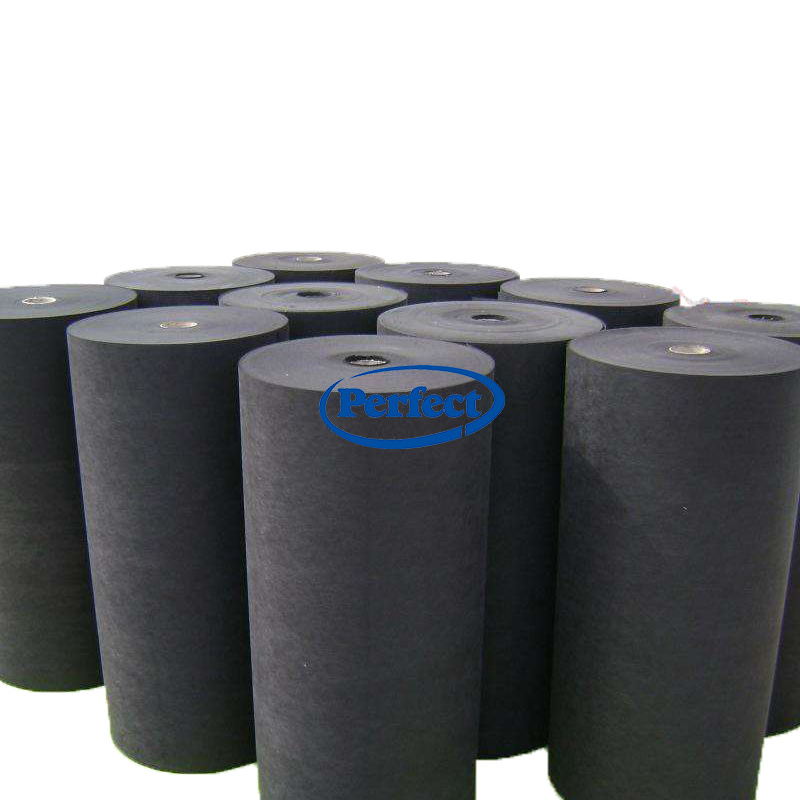

Perfect black fiberglass tissue (nonwoven) is nonwoven webis composed of glass fibers oriented in a random partern and bonded together with a proprietary, non-facing, black acrylic resin system in a wet lad process. The combination of biergs and binders form aour product with high elongation and low dusting characteristics.

We can also add PE coating layer for black fiberglass nonwoven used in the heat sealing process for glass wool/ rock wool industries; Further more, we can also adjust colors, tensile strength, fireproof performances etc. according to customers requirements.

Grammage range: 30 g/m2 to 200 g/m2
Roll width: 0.6m to 2.0m
Roll length: 60m to 1600m



1.Product List

Product

Description

Application

BGT-50 Without PE

Black fiber glass tissue 50gsm

Fiberglass cloth is good at fireproof, mildew resistant, damp proof and strong air permeability.

After laminated with glass wool or rock wool, the physical properties is excellent on heat preservation, noise elimination, fire retardant, extinction, etc.

BGT-65

Without PE

Black fiber glass tissue 65gsm

Fiberglass cloth is good at fireproof, mildew resistant, damp proof and strong air permeability.

After laminated with glass wool or rock wool, the physical properties is excellent on heat preservation, noise elimination, fire retardant, extinction, etc.

BGT-85

Without PE

Black fiber glass tissue 85gsm

Fiberglass cloth is good at fireproof, mildew resistant, damp proof and strong air permeability.

After laminated with glass wool or rock wool, the physical properties is excellent on heat preservation, noise elimination, fire retardant, extinction, etc.

BGT-501

With PE

Black fiber glass tissue 50gsm / PE 30gsm

Fiberglass cloth is good at fireproof, mildew resistant, damp proof and strong air permeability.

After laminated with glass wool or rock wool, the physical properties is excellent on heat preservation, noise elimination, fire retardant, extinction, etc.

BGT-651 With PE

Black fiber glass tissue 65gsm / PE 30gsm

Fiberglass cloth is good at fireproof, mildew resistant, damp proof and strong air permeability.

After laminated with glass wool or rock wool, the physical properties is excellent on heat preservation, noise elimination, fire retardant, extinction, etc.

BGT-90 Withou PEBlack fiber glass tissue 90gsm

Fiberglass cloth is good at fireproof, mildew resistant, damp proof and strong air permeability.

After laminated with glass wool or rock wool, the physical properties is excellent on heat preservation, noise elimination, fire retardant, extinction, etc.

BGT-100 Withou PEBlack fiber glass tissue 100gsm

Fiberglass cloth is good at fireproof, mildew resistant, damp proof and strong air permeability.

After laminated with glass wool or rock wool, the physical properties is excellent on heat preservation, noise elimination, fire retardant, extinction, etc.

BGT-110 Withou PEBlack fiber glass tissue 110gsm

Fiberglass cloth is good at fireproof, mildew resistant, damp proof and strong air permeability.

After laminated with glass wool or rock wool, the physical properties is excellent on heat preservation, noise elimination, fire retardant, extinction, etc.

BGT-120 Withou PEBlack fiber glass tissue 120gsm

Fiberglass cloth is good at fireproof, mildew resistant, damp proof and strong air permeability.

After laminated with glass wool or rock wool, the physical properties is excellent on heat preservation, noise elimination, fire retardant, extinction, etc.

BGT-130 Withou PEBlack fiber glass tissue 130gsm

Fiberglass cloth is good at fireproof, mildew resistant, damp proof and strong air permeability.

After laminated with glass wool or rock wool, the physical properties is excellent on heat preservation, noise elimination, fire retardant, extinction, etc.

BGT-140 Withou PEBlack fiber glass tissue 140gsm

Fiberglass cloth is good at fireproof, mildew resistant, damp proof and strong air permeability.

After laminated with glass wool or rock wool, the physical properties is excellent on heat preservation, noise elimination, fire retardant, extinction, etc.

BGT-150 Withou PEBlack fiber glass tissue 150gsm

Fiberglass cloth is good at fireproof, mildew resistant, damp proof and strong air permeability.

After laminated with glass wool or rock wool, the physical properties is excellent on heat preservation, noise elimination, fire retardant, extinction, etc.

BGT-160 Withou PEBlack fiber glass tissue 160gsm

Fiberglass cloth is good at fireproof, mildew resistant, damp proof and strong air permeability.

After laminated with glass wool or rock wool, the physical properties is excellent on heat preservation, noise elimination, fire retardant, extinction, etc.

BGT-170 Withou PEBlack fiber glass tissue 170gsm

Fiberglass cloth is good at fireproof, mildew resistant, damp proof and strong air permeability.

After laminated with glass wool or rock wool, the physical properties is excellent on heat preservation, noise elimination, fire retardant, extinction, etc.

BGT-180 Withou PEBlack fiber glass tissue 180gsm

Fiberglass cloth is good at fireproof, mildew resistant, damp proof and strong air permeability.

After laminated with glass wool or rock wool, the physical properties is excellent on heat preservation, noise elimination, fire retardant, extinction, etc.

BGT-190 Withou PEBlack fiber glass tissue 190gsm

Fiberglass cloth is good at fireproof, mildew resistant, damp proof and strong air permeability.

After laminated with glass wool or rock wool, the physical properties is excellent on heat preservation, noise elimination, fire retardant, extinction, etc.

BGT-200 Withou PEBlack fiber glass tissue 200gsm

Fiberglass cloth is good at fireproof, mildew resistant, damp proof and strong air permeability.

After laminated with glass wool or rock wool, the physical properties is excellent on heat preservation, noise elimination, fire retardant, extinction, etc.


2.Product details

Feature

1. Environmental friendly flame retardant binder.
2. It has good fixation, flexible handle and uniform fiber dispersion.
3. High strength corrosion resistance, flame retardancy and friction resistance.
4. Noise reduction and sound insulation, heat insulation and waterproof, oil-proof, anti-foulingperformance.

* High Tensile Strength        * Dimentional Stability                 * Electrical Properties




* High Heat Resistance                        * Fire Resistance                   * Economical



3,Typical Physical Properties

Foil-Kraft Facing / Foil-Scrim-Kraft Facing

Product

Weight (gsm)

Thickness(mm)

Fire retardant level

MD tensile strength

CD tensile strength

Softness

BGT-50 Without PE

500.3B1120N70NSOFT

BGT-65Without PE

650.4B1130N90NSOFT

BGT-85Without PE

850.5B1140N110NSOFT

BGT-501With PE

800.4B1135N75NSOFT

BGT-651 With PE

900.5B1142N96NSOFT
BGT-90 Withou PE90

0.6

B1150N120NSOFT
BGT-100 Withou PE100

0.7

B1160N130NSOFT
BGT-110 Withou PE1100.8B1170N140NSOFT
BGT-120 Withou PE120

0.9

B1180N150NSOFT
BGT-130 Withou PE1301.0B1190N160NSOFT
BGT-140 Withou PE1401.1B1200N170NSOFT
BGT-150 Withou PE150

1.2

B1210N180NSOFT
BGT-160 Withou PE160

1.3

B1220N190NSOFT
BGT-170 Withou PE170

1.4

B1230N200NSOFT
BGT-180 Withou PE1801.5B1240N210NSOFT
BGT-190 Withou PE190

1.6

B1250N220NSOFT
BGT-200 Withou PE2001.7B1260N230NSOFT

4, Product application

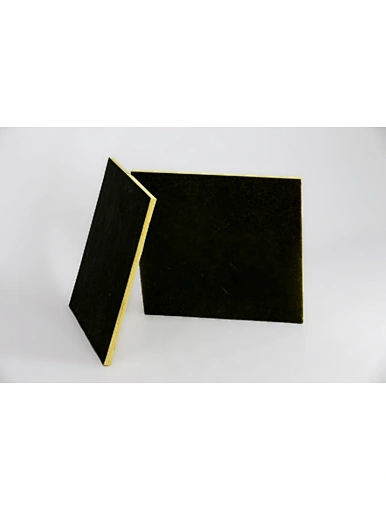

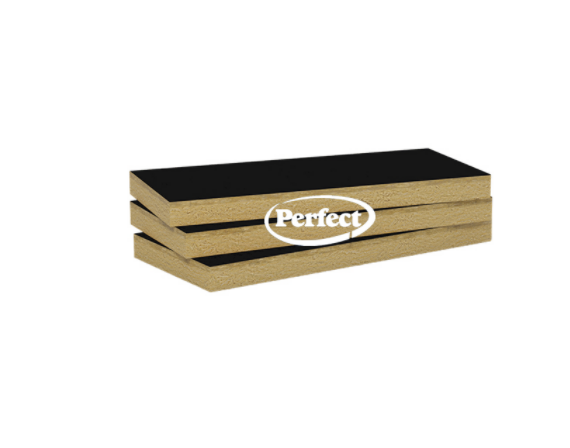

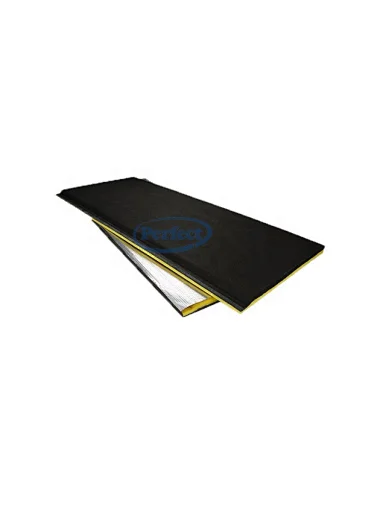

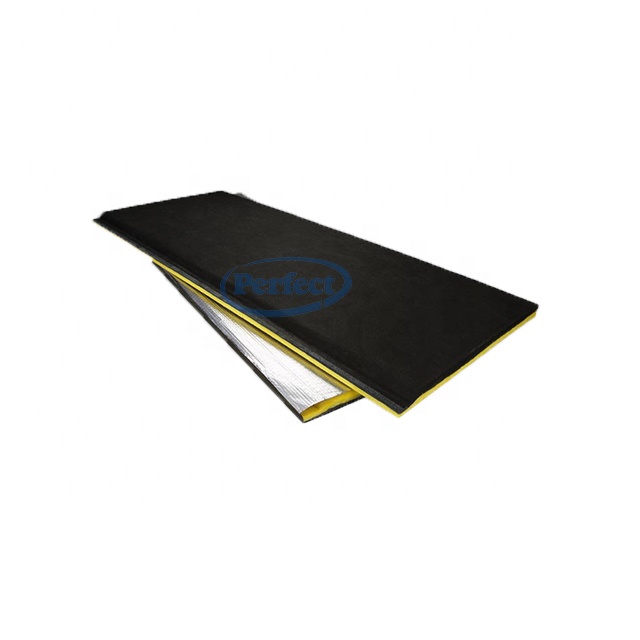

Black fiberglass tissue with fire retardant and alkali-free performance, is suitable as a surface lamination for fiberglass wool and rock wool thermal insulation.
After laminated with glass wool or rock wool, the physical properties is excellent on heat preservation, noise elimination, fire retardant, extinction, etc.
Remarks:
1. The data above are typical results and subject to change without notice.
2. Tolerance: Weight and Thickness: ±10%; Width: ±3mm; Length: ±0.5%.
3. The products should be stored at room temperature, kept from wet and heat source.

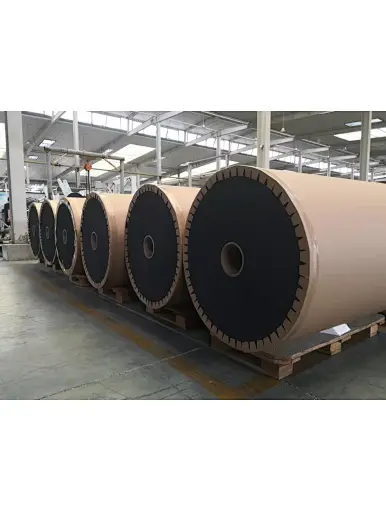

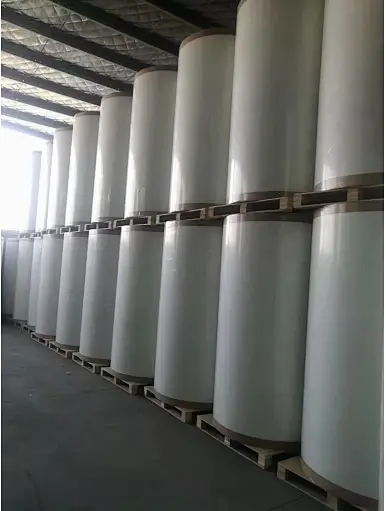

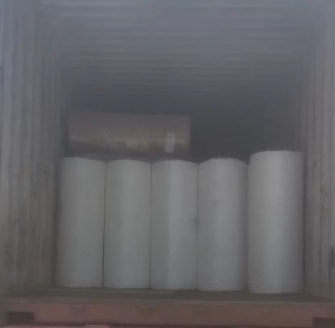

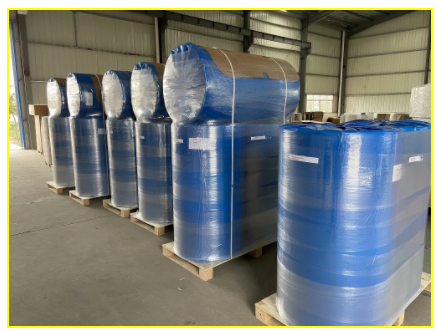

5,Packing
1. inner packed with kraft paper, outside packed with PE bags.
2. Each roll is packed by foam-plastic-fabric.
3. Pallet package
4.OEM is available.


Delivery
Our powerful production capacity ensures shortest delivery time, normally 5-7 days is enough


6, Company profile

Jinan United Perfect Building Materials is one of the largest enterprise in the fibre glass industries and has been expanding into a conglomerate since 2001. Through our efforts and consistency, Perfect has managed to establish itself as one of the leading glass fibre manufacturers globally. Starting as a small plant in Jinan city of Shandong province it has expanded its base over to Tai'an and Shanghai and has been serving customers from Asia to Europe, Middle East and Africa.

It has positioned itself as the best solution provider for the various insulation needs that cater to industries such as HVAC, Electronics, Automotives, Electrical, Mica insulation, and Construction. By capitalising on its strong R & D Culture, it thrives on providing quality products facilitated by quick service to the customers at affordable prices. It continues to expand into untapped markets and adapt with continuous improvement processes.







IMPORTANT NOTE:

1. The data above are typical results and subject to change without notice.

2. Tolerance: Weight and Thickness: ±10%; Width: ±3mm; Length: ±0.5%.

3. The products should be stored at room temperature, kept from wet and heat source.

4. Good appearance without stain, oxidation, mildew.

5. The users should take test and do trial-application on the above products before coming into application so as to witness and ensure suitability for their special purpose and technique.

* Please kindly contact with sales staff confirm the specific specifications.
