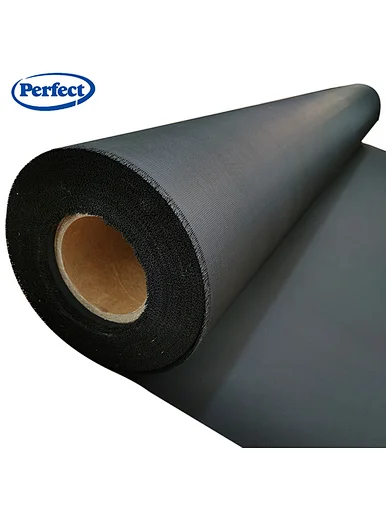

Black fiberglass Fabric BGF
Black Fiberglass Fabric type
FOB
China
7-15Day
Black fiberglass fabric/ cloth is suitable as a surface lamination for fiberglass wool, rock wool, wall panel packing, thermal insulation etc., as well as an acoustic insulation material for wood or aluminum ceiling panels.
Quantity

Perfect black fiberglass cloth can offer widest range of woven fabrics which are made of E-glass yarn. Our woven glass fabrics are manufacture with state of the art weaving technology and the best control over thickness, weight and strength.We can offers the materials engineer a wide choice of control fabric properties to satisfy design needs and objectives. Our extensive range of Fibreglass fabrics are globally recognised for its quality.

Perfect black fiberglass cloth with fire retardant and alkali-free performance, is suitable as a surface lamination for fiberglass wool and rock wool thermal insulation.

Except black color, other colors are also available according to Patone or sample according to customer's requirement.

The grammage range is from 82 g/m2 to 300 g/m2 or according to requirement.

1.Product List

Product

Description

Application

BGF-100 Without PE

Black fiber glass fabric 100gsm

Fiberglass cloth is good at fireproof, mildew resistant, damp proof and strong air permeability.

After laminated with glass wool or rock wool, the physical properties is excellent on heat preservation, noise elimination, fire retardant, extinction, etc.

BGF-127 Without PE

Black fiber glass fabric 127gsm

Fiberglass cloth is good at fireproof, mildew resistant, damp proof and strong air permeability. After laminated with glass wool or rock wool, the physical properties is excellent on heat preservation, noise elimination, fire retardant, extinction, etc.

BGF-160 Without PE

Black fiber glass fabric 160gsm

Fiberglass cloth is good at fireproof, mildew resistant, damp proof and strong air permeability. After laminated with glass wool or rock wool, the physical properties is excellent on heat preservation, noise elimination, fire retardant, extinction, etc.

BGF-180 Without PEBlack fiber glass fabric 180gsm

Fiberglass cloth is good at fireproof, mildew resistant, damp proof and strong air permeability. After laminated with glass wool or rock wool, the physical properties is excellent on heat preservation, noise elimination, fire retardant, extinction, etc.

BGF-260 Without PEBlack fiber glass fabric 260gsm

Fiberglass cloth is good at fireproof, mildew resistant, damp proof and strong air permeability. After laminated with glass wool or rock wool, the physical properties is excellent on heat preservation, noise elimination, fire retardant, extinction, etc.

BGF-300 Without PEBlack fiber glass fabric 300gsmFiberglass cloth is good at fireproof, mildew resistant, damp proof and strong air permeability. After laminated with glass wool or rock wool, the physical properties is excellent on heat preservation, noise elimination, fire retardant, extinction, etc.


Dimension
Size: 1.2m*500m, 1.2m*1000m, 1.2m*2000m etc. Core I.D.: 3"(76mm ±1) paper-pipe
Based on order, special sizes are also available.
MSDS
No harm for body and environment, non-volatile product.


2.Product details

Feature

1. Environmental friendly flame retardant binder.
2. It has good fixation, flexible handle and uniform fiber dispersion.
3. High strength corrosion resistance, flame retardancy and friction resistance.
4. Noise reduction and sound insulation, heat insulation and waterproof, oil-proof, anti-foulingperformance.


3,Typical Physical Properties

Foil-Kraft Facing / Foil-Scrim-Kraft Facing

Product

Weight (gsm)

Thickness(mm)

Fire retardant level

MD tensile strength

CD tensile strength

Softness

BGF-100 Without PE

1000.1B1220N310NSOFT

BGF-127 Without PE

1270.13B1240N330NSOFT

BGF-160 Without PE

1600.16B11100N900NSOFT

BGF-180 Without PE

1800.18B11400N1000NSOFT

BGF-260 Without PE

2600.26B11700N1300NSOFT
BGF-300 Without PE3000.30B12000N1600NSOFT

4, Product application
Black fiberglass cloth with fire retardant and alkali-free performance, is suitable as a surface lamination for fiberglass wool and rock wool thermal insulation.
After laminated with glass wool or rock wool, the physical properties is excellent on heat preservation, noise elimination, fire retardant, extinction, etc.
Remarks:
1. The data above are typical results and subject to change without notice.
2. Tolerance: Weight and Thickness: ±10%; Width: ±3mm; Length: ±0.5%.
3. The products should be stored at room temperature, kept from wet and heat source.

5,Packing
1. inner packed with kraft paper, outside packed with PE bags.
2. Each roll is packed by foam-plastic-fabric.
3. Pallet package
4.OEM is available.


Delivery
Our powerful production capacity ensures shortest delivery time, normally 5-7 days is enough



6,Company profile
Jinan United Perfect Building Materials is one of the largest enterprise in the fibre glass industries and has been expanding into a conglomerate since 2001. Through our efforts and consistency, Perfect has managed to establish itself as one of the leading glass fibre manufacturers globally. Starting as a small plant in Jinan city of Shandong province it has expanded its base over to Tai'an and Shanghai and has been serving customers from Asia to Europe, Middle East and Africa.

It has positioned itself as the best solution provider for the various insulation needs that cater to industries such as HVAC, Electronics, Automotives, Electrical, Mica insulation, and Construction. By capitalising on its strong R & D Culture, it thrives on providing quality products facilitated by quick service to the customers at affordable prices. It continues to expand into untapped markets and adapt with continuous improvement processes.











IMPORTANT NOTE:

1. The data above are typical results and subject to change without notice.

2. Tolerance: Weight and Thickness: ±10%; Width: ±3mm; Length: ±0.5%.

3. The products should be stored at room temperature, kept from wet and heat source.

4. Good appearance without stain, oxidation, mildew.

5. The users should take test and do trial-application on the above products before coming into application so as to witness and ensure suitability for their special purpose and technique.

* Please kindly contact with sales staff confirm the specific specifications.
