Glass wool pipe with aluminum foil
Glass wool pipe with aluminum foil
Glass wool pipe with aluminum foil
FOB
Quantity

I.Perfect Glass Wool Pipe
Description

PERFECTglass wool pipe

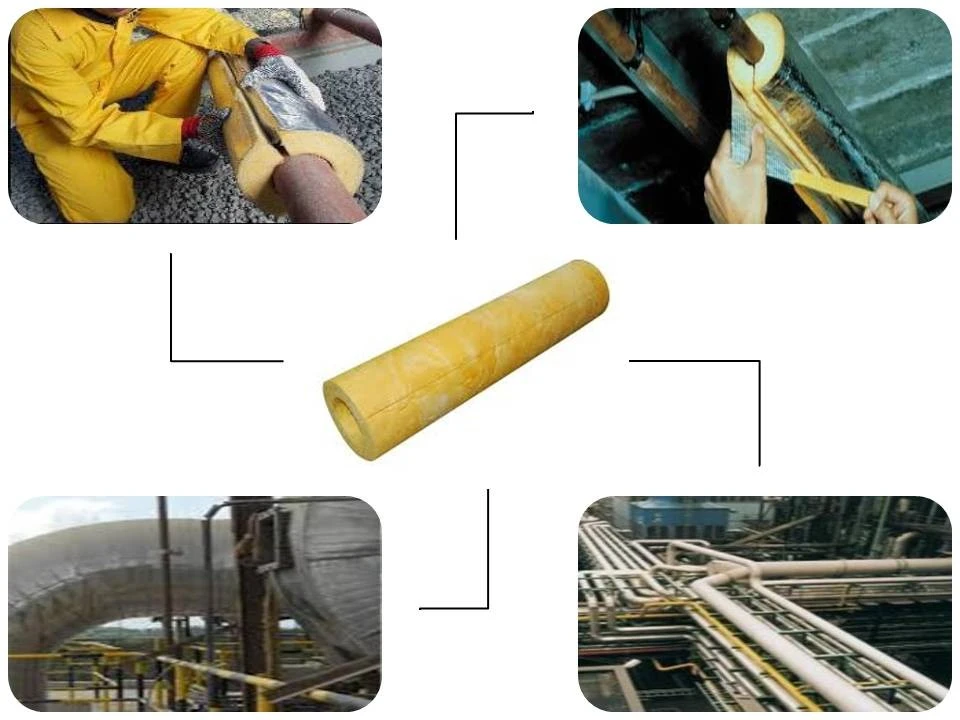

PERFECTglass wool pipe sectionis used for the thermal insulation of industrial pipes, central heating and solar energy installations, for the insulation against freezing and condensation of the pipes and for vibration and sound insulation of the pressure water pipes as well.
Glass wool pipe is manufactured from a unique rotary process with high density glass wool, which is used for hot and cold pipes in one meter length.
It is designed to fit pipes of external diameter of 15mm to 400mm with insulation thickness of 20mm to 100mm while other sizes are available upon request. Density ranges from 48kg/m3 to 90kg/m3. Pipes are split longitudinally to provide ease of installation. For application where vapor barrier are needed, pipes faced with aluminium foil are available

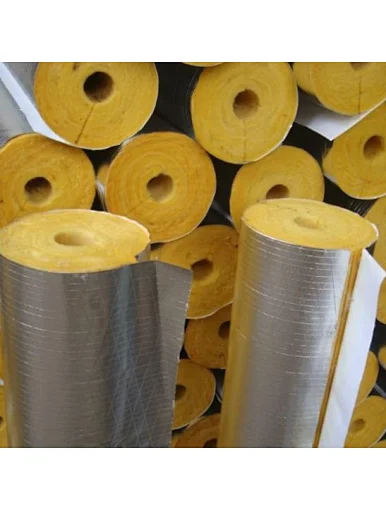

II.Perfect Glass Wool Pipe with Aluminum Foil

Specification range
(1) Density: 48-80kg/m3
(2) Inner diameter: 19-1220mm
(3) Length: 1000mm
(4) Thickness: 20-100mm

Available Size:


DiameterIDThickness, mm
(*) InchMM25304050-8090100125140150175200
1/222üüüüüüüüüüü
3/428üüüüüüüüüüü
134üüüüüüüüüüü
1-1/443üüüüüüüüüüü
1-1/248üüüüüüüüüüü
260üüüüüüüüüüü
2-1/276üüüüüüüüüüü
389üüüüüüüüüüü
3-1/2108üüüüüüüüüüü
4114üüüüüüüüüüü
4-1/2133üüüüüüüüüü
5140üüüüüüüüüü
5-1/2159üüüüüüüüüü
6169üüüüüüüüüü
8219üüüüüüüüü
10273üüüüüüüüü
12325üüüüüüüüü
14356üüüüüüüü
16409üüüüüüüü
18460üüüüüüüü
20508üüüüüüüü
21üüüüüüüü
22562üüüüüüü
32820üüüü
III.Physical Properties
Tested ContentTested ValueTested Method
     Density80kgs/m3GB/T 5480.3
 Thickness50mmGB/T 5480.3
 Thermal Conductivity (W/mK) ASTM C 518 (C 177)
 24°C0.033
 38°C0.035
 93°C0.04
 149°C0.049
 204°C0.061
 260°C0.074
 316°C0.089
 Maximum Service Temperature450°CGB/T 17430, GB50264
 Recommended Service Temperature400°CASTM C411-05, ASTM C447-03, GB50264
 Non-Combustibility
 Flame Diffustivity50ASTM E84-10
 Flame Propagation:25ASTM E84-10
 Fire PerformanceClass A1GB 8624, EN13501-1, BS 476 Part4
 Water Vapor Sorption (% by Weight)≤1%ASTM C1104/1104M
 Water Vapor Sorption (% by Volume)≤1%ASTM C1104/1104M
 Water Repellency (option available)>99%GB/T 10299

Facing
According to customer requirements, facing like alum foil, WPSK etc. can be applied to the surface for preventing moisture and radiation protection.
Glass wool pipe with Lamination

IV.Perfect Glass Wool Pipe Production Line



V.Our Factory

Jinan United Perfect Building Materials Corporation is a professional rock mineral wool manufacturer with CE FM & CCS certificate.

The products fully covered with glass wool board, glass wool blanket, glass wool pipe, etc. And our production capacity is more than 20000 tons monthly.

We have been providing customers with high-quality, cost-effective products, and quality services, and have a good reputation in the industry.

VI.Our Certification

Professional quality

Our glass wool factory is one of the top glass wool manufacturers in China, which produces

glass wool with CE, FM, ISO certified quality, and various colors and sizes are available.

VII.Our Exhibition

VIII.Perfect Glass Wool Pipe Packing & Shipping

IX.Our Service

1.OEM manufacturing welcome: products, packaging...

2. Support sample order.We will respond to your enquiry within 24 hours.

3. After sending, we will track the product every two days until you receive the product.

4. When you got your Commodities, test them and give me feedback. If you have any questions about this

glass wool board with a foil facing, please contact us and we will provide the way to solve the problem for you.

5. According to customer requirements, the surface of glass wool board can be compounded with aluminum foil facing, black tissue etc. for preventing moisture and radiation protection.

If you have any needs, please feel free to contact us, and look forward to cooperating with you.
