Perfect lamination is a professional supplier of insulation vapor retarders and facings to the Steel Building Insulation / Metal Building Insulation market. Our insulation vapor retarders and facings are designed to protect insulation from physical abuse and control moisture migration. Our facings are designed with proprietary flame retardant chemistry to meet demanding fire codes and standards.
Learning the respected WMP series, we have developed our related PSK products for metal building insulation.
Quantity
Perfect lamination is a professional supplier of insulation vapor retarders and facings to the Steel Building Insulation / Metal Building Insulation market. Our insulation vapor retarders and facings are designed to protect insulation from physical abuse and control moisture migration. Our facings are designed with proprietary flame retardant chemistry to meet demanding fire codes and standards.
Learning the respected WMP series, we have developed our related PSK products for metal building insulation.
1.Products List
Product
Description
Application

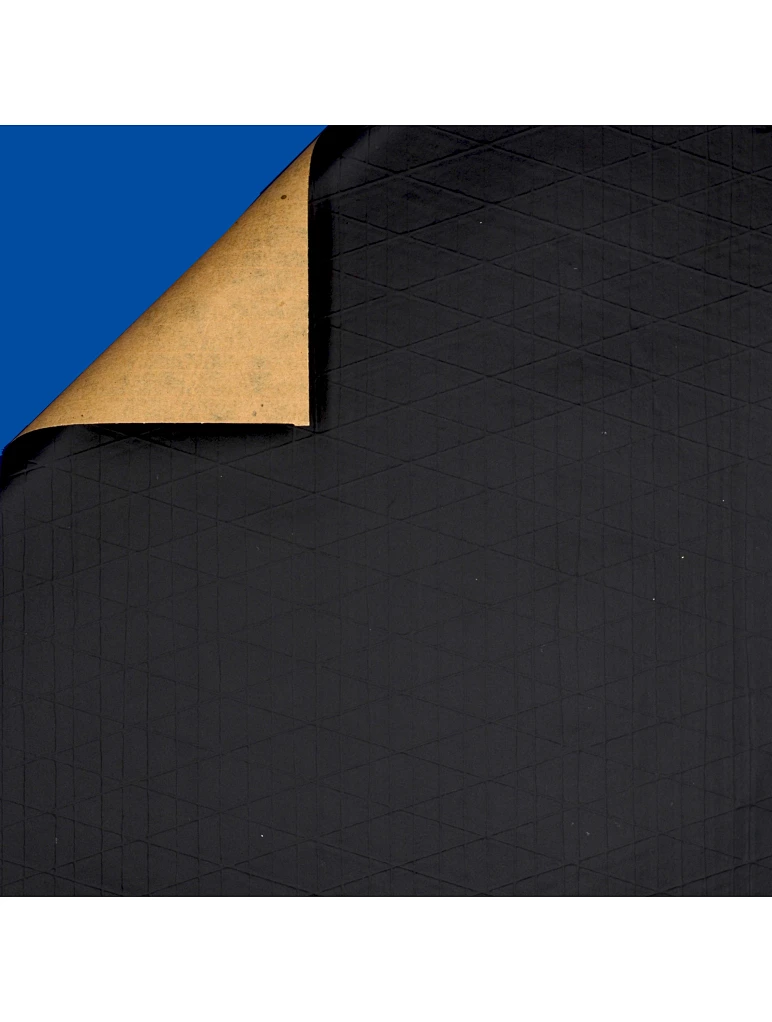

BPSK-4538A
Black PP Film / 3-way Scrim / PE / Kraft: 38gsm
Utility grade BPSK facing for metal building insulation and duct wrap where request black surface.
BPSK-4550A
Black PP Film / 3-way Scrim / PE / Kraft: 50gsm
Commercial grade BPSK facing for metal building insulation and duct wrap where request black surface.
2.Typical Physical Properties
Foil-Kraft Facing / Foil-Scrim-Kraft Facing
Product
Basic Weight
(g/m2)
WVTR
ng/N.s
Tensile MD
(N/25mm)
Tensile XD
(N/25mm)
Bursting Strength (N)
Fire Rating
BPSK-4538A
85
1.15
180
120
50
---
BPSK-4550A
100
1.15
200
135
65
---
IMPORTANT NOTE:
1. The data above are typical values only, and should not be used for specifications purpose.
2. Tolerance: Weight and Thickness: ±10%; Width: ±3mm; Length: Log Roll: ±0.3m, Jumbo Roll ±0.5%.
3. The products should be stored at room temperature, kept away from wet and heat source.
4. The users should take test and do trial-application on the above products before coming into application so as to witness and ensure suitability for their special purpose and technique.
* Please kindly contact with sales staff confirm the specific specifications.
